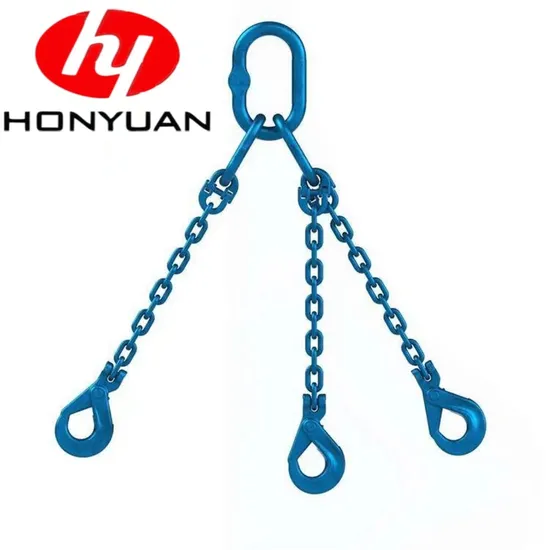

G100 Steel Welding Type Lifting Link Chain Sling

Product Description

Product Description
Chain slings are the classic and widely used load handling attachment for a wide variety of lifting applications.They feature flexibility and extremely high durability.Compared to grade 80, grade 100 chains provide a higher carrying capacity and therefore they have been used for many years.
Chain materials got a particular alloying process that results in a higher wear resistance, assured strength and 25% higher carrying capacity. Compared to grade 80, the equivalent carrying capacity results lower own weight, even though measurements and shaping are equivalent to the grade 80We offer complete chain slings and components in grade 80 and 100 as well as corresponding accessories and spare parts.Chain slings make to order according to your requirements. All lifting components are uniformly marked with equivalent chain size and grade.
Safety factor : 4:1
Product Parameters

Grade 100 Chain Sling
Chain dia
	Working Load Limit (KG)
		0º<β≤45º	45º<Β≤60º	0º<β≤45º	45º<Β≤60º
6	1400	2000	1400	3000	2120	2240
7	1900	2650	1900	4000	2800	3000
8	2500	3550	2500	5300	3750	4000
10	4000	2600	4000	8000	6000	6300
13	6700	9500	6700	14000	10000	10600
16	10000	14000	10000	21200	15000	16000
19	14000	20000	14000	30200	21200	22400
22	19000	26500	19000	40200	28000	30000

With the same nominal diameter, up to 25 % more load capacity compared to chain systems of Grade 80. Hence: significant weight reduction at the same load capacity Considerable weight reduction Compliant with all requirements of EU-standards EN 818-4 Less wear of chain links and accessories through higher surface hardness Impact toughness in comparison to Grade 80 more than doubled In itself an non-confusable system, only chains and components with equal load capacity can be combined with another Never use a sling without training. Never walk or stand under a suspended load Always know load weight to avoid sling failure Never overload a sling. Never ride on sling or load Ensure the load is balanced and will not tilt or fall. Never use an improper sling configuration Never use a worn-out or damaged sling Check tag to confirm that sling is rated adequately for the load (see load angle chart) Position hooks of multi-leg slings facing outward from the load. Do not lift on the point of the hook and ensure that the chain is not twisted or knotted. Where chain has to pass round a sharp corner use suitable packaging to give the chain protection. Balance the load and maintain load control Never expose chain slings to chemicals, particularly acidic conditions, without consulting the supplier Keep fingers, toes etc. clear ensuring they do not become trapped when lifting, lowering or controlling loads

Certifications
Packaging & Shipping
Payment Term
Exhibition
Our Factory
Established in 1984 with a focus on rigging hardware, chain, wire rope sling and assembly fabrication, HONYUAN MACHINERY CO.LTD.has evolved to become a full service supplier in distributing steel wire ropes, lifting slings, and rigging hardware to serve our clients needs in the Oil and Gas, Crane and Rigging,Stevedoring, Marine and General Construction industries. Besides we are also dealing with fasteners and other construction products to meet the requirements from our customers in this line. Our brands HONYUAN has earned highly reputation from our customers all over the world. Our clients have appreciated our time tested maxim of delivering products and services with honesty and integrity and in return it is our clients which have made possible the growth of our Company to the level it is today. In order to meet the growth of our customer needs we have recently acquired a larger more modern warehouse and production facilities, updated and expanded our range of wire rope assembly production equipment, increased and broadened our already comprehensive inventory, and expanded our sales and fabrication departments, with competent and reliable wire rope professionals. By entering our web site you will be given an idea of our stock range of products, which we feel is a good balance of the items most frequently requested by our Clients. Kindly note that there are numerous products and services that are not shown at this time, so if you do not see the product you are looking for on the site, please contact our sales office directly.We will be adding even more products, product features, safety and technical information to the site, in the very near future. HONYUAN people warmly welcomed your visit to our factory and discuss face to face, thank You!
