Outdoor Highway Guard Rail Hot Dipped Galvanized W Beam Steel Plate

Product Description

Product Description

Product	Size (L * W * WW * WH * T)	Ordinary type Quantity per KM	Reinforced type Quantity per KM	Coating Treatment
Thrie-beam	4320*506*85*3/4 mm	250 Pcs	250 Pcs	Hot Dip Galvanized: 60-100μm; Powder spraying: Pre-Galvanized + Powder spraying 50-90μm;
Post	2150*130*130*6mm/ 2150*140 * 4.5mm	251 Pcs	501 Pcs
Bracket	300*70*4/4.5mm	251 Pcs	501 Pcs
Spacer Block	178*196*200*4.5mm	251 Pcs	501 Pcs
Post Cap	Φ140mm	251 Pcs	501 Pcs
Washer	76*44*4mm	251 Pcs	501 Pcs
Bolts & Nuts	M16*35mm	2000 Sets	2000 Sets
Bolts & Nuts	M16*42mm	251 Sets	501 Sets
Bolts & Nuts	M16*150/170mm	251 Sets	501 Sets
Terminal End	R160	2 Pcs	2 Pcs
Notes	1.Shape:Three waves, Thrie-beam 2.Normal Specification: 4320*506*83*3mm. Other different sizes are available. 3.Highway guardrail Standards: JT/T281-2007,AASHTO M-180, RALRG620,SPS98S 4.Steel Material: Q235, Q345, S235JR, S275JR, S355JR 5. The thickness of the steel: 2.75mm, 3mm, 4mm or based on consumers' request. 6. Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 7.Guardrail relevant parts: Post, Spacer (C, U,H, Round, Square and Sigma types etc) and Fasteners, Bolts & Nuts, Terminal,Reflectors 8. Certificate: ISO9001:2015

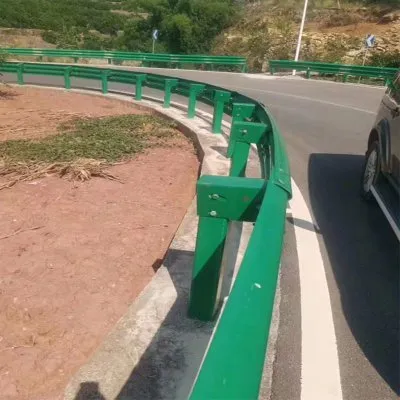

Roadside safety begins with installation of guardrail products from HongYe, your expert highway guardrail supplier. Contractors prefer HongYe W-Beam and Thrie-Beam guardrail for its easier installation and long service life. All HongYe highway,safety products conform to AASHTO and ASTM specifications. We use prime steel in each guardrail design. A multi-stage cleaning process prepares the metal for galvanizing. Continuously galvanized steel ensures a consistent finish without sharp points or zinc build-up. Looking for a different finish for your safety guardrail? We offer black, painted epoxy coatings, or weathered steel as alternative finishes for aesthetic applications. Whether your highway guardrail project calls for weak-post or strong-post, W-Beam or Thrie-Beam, curved or straight sections of guardrail, HongYe products are designed as a system that assures consistency for fast, safe guardrail installations. We also provide guardrail end sections. These products help complete highway safety guardrail systems for every specification. With standard end sections and energy-absorbing guardrail end treatments for wood post or steel post designs, we can meet your full project requirements.
Hongye Steel (Shandong) Co., Ltd. is a comprehensive, modern and high-quality enterprise integrating steel production, processing and sales. The company has developed rapidly since its establishment. It has established long-term and stable cooperative relations with Shandong Iron and Steel, Rizhao Iron and Steel, etc. Main products: carbon steel, I-beam, H-beam, stainless steel plate, wear-resistant plate, patterned steel plate, galvanized series, steel pipe, rebar, welded pipe, galvanized welded pipe, spiral welded pipe, etc. Widely used in important fields such as automobile, petroleum, railway, bridge, construction, electric power, transportation, machinery, shipbuilding, light industry, household appliances, kitchen and so on.Hongye Steel (Shandong) Co., Ltd. has become the most potential steel supply company in Shandong Province in a short period of time. The company is supported by a strong capital chain and has been widely recognized by foreign customers. The products not only sell well in the domestic market, but also in the United States, Europe, Pakistan, South Korea, Japan, South Africa, Vietnam, Myanmar, Ethiopia, Australia, Bahrain, Singapore, Brazil, Russia and other countries and regions, and are well received by foreign customers. The number of exporting countries continues to grow, and sales are gradually increasing.
Q1: Are you a factory?
A1: We are a factory as well as a professional manufacturer established for more than 20 years and export over 10 years.
Q2: Can I get some samples?
A2: Can provide small samples for free. Customized sample takes 5-7 days.
Q3: How about the delivery time?
A3: Small trial order takes 5-7 days. Container order need 15-20 days.
Q4: Do you have any protection when packing?
A4: Cover with PE film , wrap with waterproof paper, pack with wooden plate,belt by steel strip, fasten on pallet.
Q5: How about your quality and how do you guarantee the quality?
A5: All products we supply is primary as you need, Our company is certificated to CE, and every product will be tested for 4-5processes. We welcome customers or the third party inspection agencies to come to our factory for inspection.
Q6: What is your terms of payment?
A6: Usually 30% deposit by TT in advance and balance against copy pf BL.
