3/4/5axis V1270 Machining Center CNC Machine with Bt40 Spindle for Steel Structures

Product Description

Experience the pinnacle of precision and power with our BT40 High Precision Big Size Powerful Spindle CNC Machine Center
Product Description

Product Parameters

Model		TZ-V1270
Worktable size L*W	(mm)	1200x600
Work table Max. loading	kg	600
T-slots size (N×W×D)	mm	5x18x100
X/Y/Z axis travel	mm	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	45/45/45
Spindle taper		BT40
Max. spindle speed	rpm	12000
Spindle motor power	kw	11
Distance from spindle nose to workbench	mm	140-840
A.T.C capacity	pcs	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	8100
Machine size (L*W*H)	mm	3100*2760*3100

1. Experience the robust design of the Classic TZ-V850 vertical extra bed, tailored for enhanced performance.
2. Crafted from premium-grade Yunnan cast iron, the bed and its core components utilize a state-of-the-art resin sand casting process, ensuring superior durability and precision.
3. The machine's pivotal structural parts are meticulously machined with large, imported high-precision CNC equipment, including pentahedral machining centers and gantry guideway grinders, delivering unparalleled accuracy.
4. With high-precision imported spindle bearings, the main transmission system is powered by a Japan Mitsubishi servo motor. This setup, directly coupled to the spindle, guarantees exceptional rigid tapping abilities, high-speed operation, and reduced noise levels.
5. Equipped with advanced ball linear guide rails, the system ensures seamless and precise movement.
7. Engineered for enhanced stiffness, the three-axis ball screw is pre-stretched to deliver optimal performance.
8. Utilizing imported, specialized screw bearings, the ball screw bearings are designed for exceptional reliability and longevity.
9. The ball screw and AC servo motor shaft feature imported couplings for gapless direct transmission, ensuring precise and accurate mechanical positioning.
10. An automatic lubrication system is integrated to provide regular and precise lubrication to the guide rail and ball screw, maintaining peak performance.
11. The spindle's tool release mechanism is driven by a renowned brand's gas booster cylinder, offering dependable performance, safety, and energy efficiency.

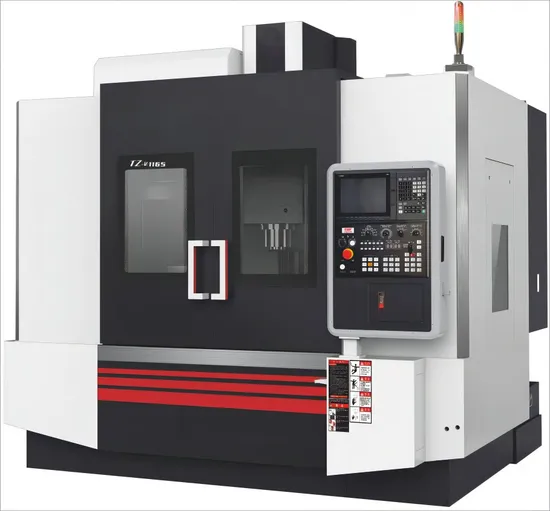

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Immerse yourself in a production environment unlike any other with our sophisticated machine, meticulously crafted to deliver optimal processing conditions. Experience a seamless blend of efficiency and superior output quality that elevates your production capabilities to unprecedented levels. Enhance your operations with innovative technology and enjoy craftsmanship that guarantees extraordinary productivity and exceptional precision, setting new standards in the industry.
Our cutting-edge imported machinery, boasting state-of-the-art horizontal and vertical machining centers, CNC boring machines equipped with rotating tables, and high-precision gantry guideway grinding machines, is engineered to deliver unparalleled workpiece accuracy. This technological prowess not only elevates assembly precision but also ensures the longevity of accuracy, reinforcing our esteemed position as leaders in the industry. Our commitment to excellence and innovation ensures that every detail of our machinery is optimized for maximum performance, reliability, and satisfaction.
• Pioneering Detection Techniques
We utilize the latest laser technology for thorough testing and precise calibration of positioning accuracy. By adhering strictly to the renowned German VDI3411 inspection standards, encompassing five exhaustive tests, we assure precision that stands unmatched in the market. This commitment to precision ensures that our machines deliver performance that exceeds expectations, providing reliability and accuracy that are second to none.
Prior to delivery, each machine tool undergoes extensive processing evaluations to ensure they consistently exceed real-world processing accuracy demands, delivering performance that not only meets but exceeds all industry expectations. Our rigorous evaluation process guarantees that you receive a product that achieves outstanding results, providing you with the confidence and assurance needed to excel in your field.
Product sample
• This state-of-the-art CNC machining center is a marvel of engineering excellence, meticulously crafted to blend milling, drilling, and tapping functionalities into a seamless operation. Boasting unparalleled versatility, it ensures flawless and efficient execution across a multitude of tasks, elevating your operational capabilities.
• Expertly designed for CNC machining across an extensive range of metal profiles, including aluminum, steel, copper, and even non-metal materials, this exceptional machine dramatically enhances your production capabilities. It propels efficiency and fosters innovation, making it an indispensable asset for any manufacturing process.
• Ideally suited for a diverse array of flourishing industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails, this machine opens up new vistas in innovation by consistently delivering precision, reliability, and exceptional performance. It is your key to unlocking limitless potential.
Packaging & Shipping
•Uncompromised Protection: Our expertly crafted packaging solutions guarantee that your High-Performance CNC Machine for Milling Hard Metals and Alloys, featuring the BBT30 Taper, arrives at your location in immaculate condition. We prioritize safeguarding your invaluable investment, ensuring it comes to you unblemished and primed for immediate operation.
•Robust Structural Stability: Meticulously engineered, our packaging excels in meeting the rigorous transportation demands, offering unmatched stability. This well-thought-out design maintains the structural integrity of your CNC machine, securing it throughout its entire transit, all the way to your doorstep.
•Eco-Friendly and Fully Recyclable: Our commitment to sustainability is evident in our eco-conscious packaging materials, which are entirely recyclable. This approach not only minimizes environmental impact but continues to offer top-tier protection, merging ecological responsibility with superior performance.
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, with the remaining 60% balance payable before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will select the most suitable machines for your needs.
