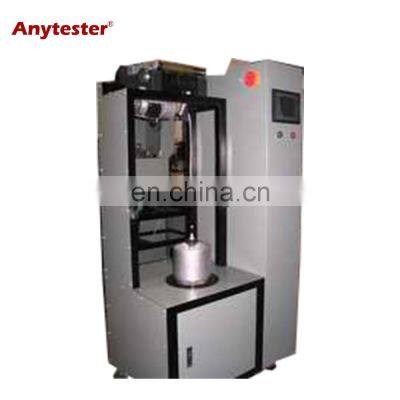

Laboratory Two For One Twister Mini Machine Can Be Used For Cotton Or Wool Fiber

Product Description

Product Description
Product Description
HY1007 Laboratory Two for One Twister is part of the mini spinning system. It's mainly used in university, researching center etc. and it is used to twist two plied yarns into one folded yarn through ring spinning and twisting.
Detailed Images

Model	HY1007
Spindle number	1
Spindle speed	8000RPM
Output capacity	80m/min
Bobbin size	Φ42*170mm
Grooved drum	Φ82*170mm
Twist range	120 ~ 2000 twist/m
Power	220V/380V, 50/60Hz, 360W
Dimension	800*600*1700mm

Specification
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Packing & Delivery

Packaging
Size(cm)	80(L) * 60(W) * 170 (D)
Weight	400Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
