High and Low Temperature School Bus, Bus, Family Car, Business Car Customized Car Seat Pressure Sensor
| US$2.00-5.00 | 10,000 Pieces (MOQ) |
Basic Info.
Model NO.
VCG
Material
PVC
Position
Car Mount
Leatheriness
Car Mount
Car Make
All Car Brands
Baby Seat Brand
All Car Brands
Condition
New
Material Surface Thickness
0.188mm
Output Signal
Resistance<100Ω
Film Thickness
0.5+-0.1mm
Bottom Glue
Pet 3mdouble-Sided Glue
environment Temperature
-15°c-80°c
Permanence
>150000
Transport Package
Carton Packing
Specification
180*86*150mm
Trademark
VFTest
Origin
China
HS Code
9026209010
Production Capacity
2000000pieces/Year
Product Description

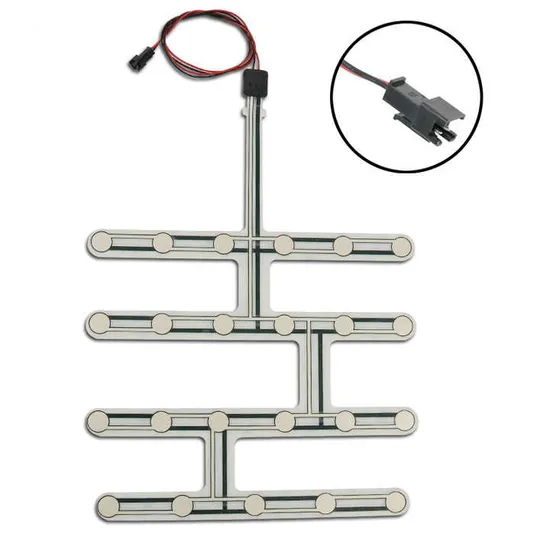

Product DescriptionThis sensor is popular used by car seats and taxi seats. It can recognize when person on the seats. It's a pressure sensor, also called touch point sensor. Some bus passenger seats also can use this kind of sensor for occupancy application.
| Function | Seat pressure |
| Packing | 50pcs/box |
| MOQ | 100pcs |
| Payment Term | T/T,Paypal,WU |
| Trade Term | EXW,FOB,CIF |
| Certificate | CE and ISO |
| Sample | Available for testing |
| Performance Parameters Table | |||||
| Parameter | Condition | Sign | Numerical Value | Unit | |
| Min | Max | ||||
| Working Voltage | U working | 0 | 20 | V | |
| Working Current | I Working | 0 | 50 | mA | |
| Non-trigger resistance value | No load | Rx=R No load | 10.0K | Ω | |
| Trigger resistance value | Bearing body | Rx=R Trigger | 0 | 100 | Ω |
| Insulation impedance | No load | Rx=R No load | 10 | 20 | MΩ |
| Specification | |||||
| Material | PC | ||||
| Material surface thickness | 0.188mm | ||||
| Output Signal | Resistance<100Ω | ||||
| Film thickness | 0.5+-0.1mm | ||||
| Bottom glue | PET 3MDouble-sided glue | ||||
| Enviroment Temperature | -15°C-80°C | ||||
| Permanence | >150000 Time | ||||
| Pressure range single-spot test(Special Poise) | 70g | 100%non-conducting | |||
| 130g | 100%conducting | ||||
| Connector | Seal gum | ||||
| To match as the seat | |||||
Why choose us
1) We can provide you with different types of seats and seat parts for your selection.
2) Small MOQ: 100pcs,mixed order acceptable, welcome trial order.
3) We can provide samples for your test.
4) Safety, on-time delivery, excellent quality with competitive price.
5)OEM &ODM service available.
