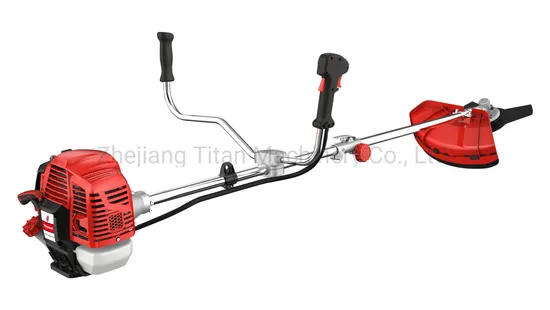

52cc 2 Stroke Gasoline Brush Cutter with New Design (TT-BC520)

Product Description

Engine Model: 1E44F-5
Engine Type: Single cylinder, air-forced cool, 2-stroke
Displacement: 52cc
Rated Power: 2.2 kw / 7500 r/min
Line Head Trimmer: 335mm
Metal Blade Diameter: 255mm
Working Shaft Length: 1500mm
Fuel Tank Capacity: 1200ml
N. W/G. W: 9.5/7.5kgs
Ignition: CDI
Package size 1: 1650*105*100mm/310*250*310mm--40'HQ: 1650PCS
Package size 2: 1070*315/125*290mm--40'HQ: 989PCS
Model: 52cc gasoline hedge shears(TT-BC520)
--POWERFUL AND STEABLE! ! !
--GOOD HEPLER FOR YOUR GARDEN CARE! ! !
--Our main market is in Europe. There are many customers and feedback is quite well!
Foreign brands Spare parts are also suppliable:
1. NGK, Champion spark plug
2. Walbro carburetor
Features:
Built professionally for dynamic power and high efficiency;
Two-handle operating mode to improve safety and reliability;
Automatic releasing strap design improves operation safety;
Various metal blade size for a wide range of use;
Quickly and easily changing metal blades and nylon cutter.
Large and Toolless filler cap
Easy Access to Air Filter for Cleaning, maintenance and replacement
Easy starter (option).
Gloves, safety goggles, ear muffs, helmlet are optional
Safety lock-off switch
Warranty: 1 years for this brush cutter
Usage
For home, semi-professional or professional garden care
Quality & Inspection
Cooperated with good reputation suppliers.
100% check spare parts quality which produced from matching suppliers.
QC checking each step from spare parts to production on the full of line.
CARBURETOR
The engines are using good quality brand carburetors.
PISTON
Light pistons/two piston rings
FUEL TANK
Larger cap
Made of Viton, which can unleaded gasoline to high temperatures.
Special equipment to prevent escape of vapors.
Package:
Standard exported carton, 5 layers browb box.
We will use standard exported package if no special requirments.
OEM FREE for above 1000pcs
Plant
1.6 working line enaure our production ability.
2. More than 100 skilled workers and employees including senior foreign trade salesmen and production manager with more than ten years' experience.
3. The factory covers a floor space of over 25, 000 m2
4. CERTIFICATE OF CONFORMOTY OF QUALITY MANAGEMENT SYSTEM CERTIFICATION: ISO9001: 2008
5. SGS reports by Made-in-China: TITAN IS AUDITED SUPPLIER

Item	TT-BC520
Engine model	1E44F-5
Displacement	52CC
Rated power	2.2kw/7500rpm
Carburetor	Pump film with oil bulb
Gas/oil mix ratio	40:1
Pipe diameter	26mm
Drive shaft	9 T/8mm
Ignition	CDI
Fuel tank capacity	1200 ml
Idel Speed	3000+200rpm/min
Max. Speed	9000+200rpm/min
Color	orange & black
N.W. /G.W.	9.5kg/7.5kg
Packing	2 carton/pcs
Carton meas	1650*105*100mm/ 310*250*310mm
40'HQ	1650pcs
Color	engine cover, outlet seat, handgrip seat, accelerator lever, gear case, protector, protetor seat, nylon Trimmer, blade protector (021C or Customized)
