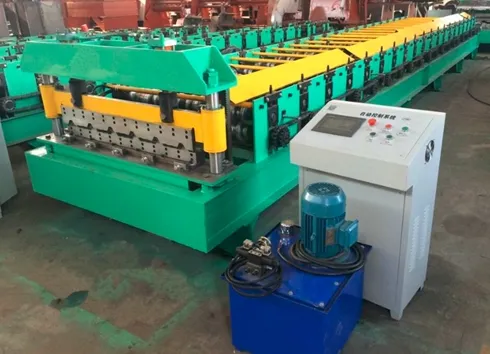

Bohai Ibr Roof Box Roll Forming Machine

Product Description

Product Description
Bohai has been engaged in the research and manufacture of roll forming machines that include corrugated roof sheet forming machine, 840 corrugated sheet roll forming machine, sandwich panel forming machine , flat sheet bending machine, etc. With more than 20 years of experience in this line, we know how to produce a productive and durable corrugated roof sheet forming machine at a low cost. Please contact us for your corrugated roof sheet forming machine needs.
Profile Drawing Product Parameters
Main Parameters De-coiler: Manual operation, passively de-coiling Loading of de-coiler: 5t Frame of machine: Welded with 350H beam steel Guide feeding way of forming: Side direction roller type Forming machine type: Wallboard and chain drive Diameter of shaft: ¢76mm Chain: 16A single row Motor power of forming machine: 5.5KW Line speed of forming machine: 5-17m/min Steps of forming machine: 18 Roller material: Superior 45# steel forging
Thickness of chrome plated on roller: 0.05mm Hydraulic station motor: 4 KW Hydraulic station oil pump: Gear pump Cutting way: Cut off after hydraulic shaped Cutting blade material: Cr12 Cutting blade heat treatment: HRC58ºC-60ºC Rolling thickness: 0.4-0.8mm Feeding width: 1250mm Precision of cut-to-length: ±2mm Frequency changer: Panasonic Computer adopts PLC: Panasonic Dimension of machine: 8.5m×1.6m×0.8m Technological Process
Passively De-coiling → Guiding & Feeding Material → Roll Forming → Cutting-to-length → Output Panel
Technological Process Figure
Characteristics This corrugated roof sheet forming machine is controlled automatically by superior software to accomplish the management of information. In accordance with the international advanced level, this product allows the customized design and manufacture as the users want. We supply complete after sales service for users, as well as the technical support for installation, adjustment and maintenance of the machine. Our product can be provided to make the sheet in different coil width and height of wave. The profile drawing is available in replying the inquiry of customers.
Detailed Photos
Certifications
Company Profile
Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Packaging & Shipping
Photos with our customers
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
