Computerized Hydraulic 1000kN Steel Rebar Tensile Traction Testing Machine/Deformed Rebar Tension Yield Strength Tester
Basic Info.
Model NO.
WEW-1000
Max Diameter of Workpiece
10-50mm
Mass Scope of Workpiece
10000kg
Type
Strength Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
1
Load Way
Hydraulic
Loading Method
Static Load
Display
Digital
Control
Computer Control
Weight
1000-2000Kg
Power Source
AC220V
Oil Cylinder Position
Under
Usage
Steel Metallographic Material
Accuracy
Class 1 /0.5
Loading Max
300 600 1000kn
Delivery Time
20 Days
Tensile Jaw
10-20-60mm
Piston Stroke
250mm
Column Distance
525mm
Tensile Fixture
Hydraulic Automatic Clamp Fixture
Flat Jaws for Steel Plate
0-40mm
Compression Plate
Φ200mm
Bending Roller Width
30X120mm
Bending Span
30-450mm
Main Body Size
860X640X2300mm
Oil Control Cabinet
1200X600X750mm
Total Weight
3.8tons
Transport Package
Plywood Case for Container Loading
Specification
2100*1500*3200
Trademark
CHENJI or OEM
Origin
China Jinan or Others
HS Code
9024800000
Production Capacity
200 Set Per Year
Packaging & Delivery
Package Size
890.00cm * 980.00cm * 1990.00cm
Package Gross Weight
3200.000kg
Product Description
Product Description1. Application
Computer Display Universal Tensile Testing Equipment is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.
2. Standard:
ASTM E8Standard Test Methods for Tension Testing of Metallic Materials
ASTM E4 -16 Standard Practices for Force Verification of Testing Machines
ISO6892-1:2016 Metallic materials - Tensile testing - Part 1: Method of test at room temperature
ISO75000-1:Metallic materials--Verification of static uni-axial testing machines--Part 1: Tension/compression testing machines--Verification and calibration of the force-measuring system
The Main Test Machine Structure are below :
Product Parameters Main Technical Parameters:
| Model | WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
| Max.load | 300kN | 600KN | 1000KN | 2000KN |
| Load accuracy | Class 1 | |||
| Load range | 1%-100%FS | |||
| Load resolution | 1/500000 | |||
| Deformation Measurement Range | 0.2%~100%FS | |||
| Deformation accuracy | ≤±1 % | |||
| Displacement resolution | 0.01mm | |||
| Displacement accuracy | ≤±1 % | |||
| Displacement error | ≤±1 % | |||
| Stress Control Speed | 1~45 Mpa/s | |||
| Stress Control Speed | 0.001~0.5 mm/s | |||
| Displacement Control Speed | 0.02~3 mm/s | |||
| Constant load, deformation and displacement control accuracy | When rate <10% FS, the precision± 1% When rate ≥ 10% FS, the precision ±0.5% | |||
| Stress rate accuracy | When rate < 0.05% FS/s, the precision± 2% When rate ≥ 0.005%FS/s, the precision ±0.5% | |||
| Piston Stroke | 200mm | 200mm | 250mm | 250mm |
| Max. tensile test space | 600mm | 700mm | 700mm | 800mm |
| Max. Compression test space | 550mm | 650mm | 650mm | 750mm |
| Effective test space | 440mm | 505mm | 525mm | 685mm |
| Clamping method | Hydraulic Automatic Clamp Fixture | |||
| Round specimen clamping range (mm) | Φ5-Φ32 | Φ13-Φ40 | Φ20-Φ60 | Φ20-Φ80 |
| Flat specimen clamping range(mm) | 0-15 | 0-15,15-30 | 0-40 | 0-40 |
| Compression Plate (mm) | Φ160 | Φ160 | Φ200 | Φ225 |
| Bending roller width(mm) | 30x120mm | |||
| Bending span (mm) | 30-450mm | |||
| Power supply | 3-phase, 380V, 50HZ 2.0kw (can be customized) | |||
Packing size and weight
| Model | WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
| Main body size (mm) | 700x500x1865 | 1050x800x2500 | 860x640x2300 | 1100x740x2700 |
| Oil control cabinet(mm) | 1200x600x750 | 1130x750x930 | 1200x600x750 | 1200x600x750 |
| Total weight (kg) | 1800 | 1800 | 3500 | 8500 |

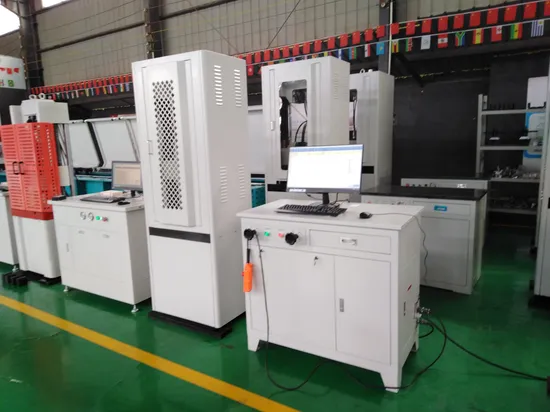

Below are the The Important parts and the Features for WAW or WEW Universal Testing Machine : Packaging & Shipping
Here are the real and actual package for kinds of testing machines:
for rubber/ wood/ steel/ metal/ concrete/ etc The computerized Control system are based by the inteligent software autonatic operation: Application in the actual use
The Hydraulic Universal Testing Machine are widely used for the kinds of material: Tensile/ Shearing/Bending/ Compression
