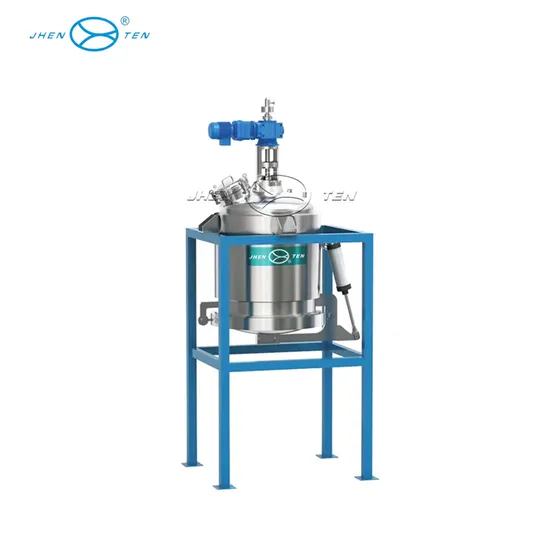

Factory Supply Stainless Steel Coffee Extraction Tank with Agitator

Product Description

Product Description Feature
• Volume: 1000L-5000L and multiple specification, also can design and manufacture according to customers' requirement.
• Pneumatic control self-locking type slag extraction valve not only ensures no leakage, but also guarantee under the condition of suddenly without electricity or gas, slag discharge door won't open automatically, safe and reliable operation.
• The connection adopts Tri-clamp, the tanks inner use 304 or 316L The inner surface mirror polishing Ra≤0.28um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customer s requirement.

Tank Optional Configuration
• The body of Coffee Extraction Tank can chose sterile air filter thermometer (Digital display or Dial type), pressure gauge, sight glasses, sanitary manhole, liquid in-outlet, CIP Universal rotating cleaning ball, safety valve, also can configure as customer's requirement.

Application
• Used for extracting coffee

Design Parameter
Design pressure	customers' requirements (ATM-0.8MPa)
Design temperature	Tank body and Jacket (0ºC~160ºC)
Material
Liner	304, 316L
Jacket	304
Insulation	Rock wool (keep warm)
Legs	304
Connection
In-outlet	Tri-clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision	Inner surface Ra≤0.4um
	Outside surface Ra≤0.6um

Normal Model And Main Technical Parameters

Model		JTRKC-1000	JTRKC-1500	JTRKC-2000	JTRKC-3000	JTRKC-5000
Effective volume(L)		1000	1500	2000	3000	5000
Tank	Diameter(mm)	Φ1100	Φ1250	Φ1300	Φ1600	Φ1800
	Height(mm)	1000	1200	1500	1500	1800
Mxing	Power(kw)	1.5	1.5	2.2	3	4
	RPM(r/min)	60 (Special open turbine impellers)(Can adjust the design according to the customer's usage)

The above-mentioned data is the standard, it can customize according to customers requirements

Company Profile
Wenzhou Jhenten Machinery Co exceeds in this filed and has been credited wth honors of ISO9001-2008 quality management system certificate, CE certificate and ASME certificate.
In additon to the introduction of new manufacturing methods an the purchase of advancedwelding equipment, we are also dedicated to researching the improvement of quality, functionand usage life of our products. We have been meenting global demand of high quality & technical support to our clients. Our products cover from all kinds sanitary filter, cartidge filter, bag filter, mixing tank, strorage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab soluton laboratories, mineral water, liquor and cosmetics.
No matter the functions, data presentation material use, welding techniques, Qc, or the lookof our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides we have obtained the sanitary license and honour of high quality & honesty from authority.

FAQ
Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.

Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.

Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.

Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.
