Cosmetic Powder Mixing Production Line

Product Description

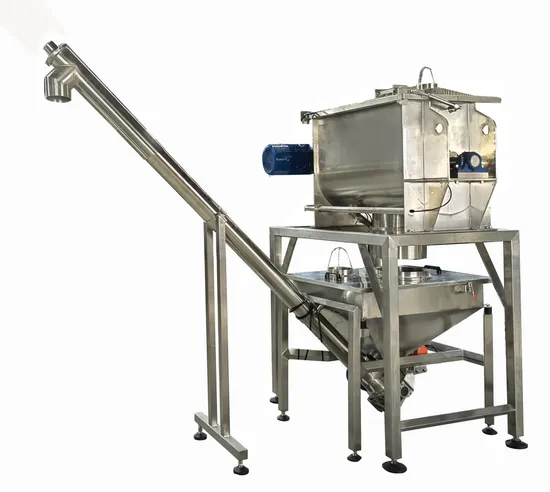

Automatic Cosmetic Powder Mixing Production Line
Cosmetic powder handling system principle
All Machinery cosmetic powder processing systems are manufactured using SS304 or 316. We pay great attention to the cleaning problem in the production process. Using the dust remover independently developed by Neil Machinery, we can keep the working environment clean and sanitary. Improvements will be made to ensure a safe production environment. The Neil Mechanical Paddle Mixer is equipped with an automatic liquid spraying device and an automatic weighing system, which can fully mix the powder materials used to make cosmetics in standard proportions. It is conveyed by vacuum conveyor, with high efficiency, low residue, and fast equipment cleaning speed, which can greatly improve production efficiency.

Cosmetic powder handling system services
Machinery provides customers with rapid solution customization and design. We will formulate a suitable system frame structure according to the environmental layout of the customer's production workshop, and provide free overseas engineer services. Our equipment will ensure easy cleaning and stable work efficiency. Welcome customers from all over the world to visit our company and cooperation
Main Technical Data

Model	DH-JD-200	DH-JD-300	DH-JD-500	DH-JD-1000	DH-JD-1500	DH-JD-2000
Effective Volume	200L	300L	500L	1000L	1500L	2000L
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	250kg	350kg	500kg	700kg	1000kg	1300kg
Total Power	4kw	5.5kw	7.5kw	11kw	15kw	22kw
Length(TL)	1370	1550	1773	2394	2715	3080
Width(TW)	834	970	1100	1320	1397	1625
Height(TH)	1647	1655	1855	2187	2313	2453
Length(BL)	888	1044	1219	1500	1800	2000
Width(BW)	554	614	754	900	970	1068
Height(BH)	637	697	835	1050	1155	1274
Radius(R)	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz
