Impact Testing Machines Digital Charpy Impact Tester with CE Certificate

Product Description

Product Description

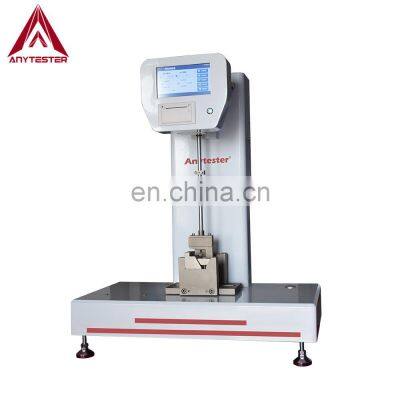

Product DescriptionAT421D Series Digital Charpy Impact Tester (original HY4251D) is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen. StandardISO 179GB/T 1043, 18743, 3808BS EN 20811JJG 45JB/T 8762ERT 120-2-02Note: For more standards, please contact usSpecificationModelAT421DAAT421DBImpact velocity2.9m/s3.8m/sImpact energy(0.5J), 1J, 2J, 4J, 5J7.5J, 15J, 25J, 50JImpact center distance230mm380mmPendulum angle150°160°Radius of striking edgeR=2±0.5mmR=2±0.5mmRadius of jawR=1±0.1mmR=1±0.1mmInclined angle of striking edge30±l°30±l°Energy display resolution0.01J0.01JJaw support spacing40, 60, 62, 70mm40, 60, 70, 95mmPower supplyAC220V 50HzAC220V 50HzDimensions420×260×630mm460×330×745mmWeight60kg70kgDetails & Features★ SCM control, LCD display, touch screen control, easy to operate, accurate and reliable★ Automatically correct the energy loss caused by friction and wind resistance, no need to manually calculate and correct ★ Automatically calculate and display impact energy and also mean value after test finishing ★ Data with U disk storage function, can be exported to edit and print accurate and reliableOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions420×260×630mmWeight60kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
