Polycarbonate PC Solid Compact Sheet Crystal Sheet Panel Embossed Textured Board Plastic Sheet Extruder Machine Extrusion Making Machinery

Product Description

Polycarbonate PC Solid Compact Plastic Sheet Manufacturing Machine
This line consists of main extruder, co-extruder, hydraulic filter, melting pump, T-die head, three roller calendars and other downstream parts, like cooling frame, haul off and cutter, which can continuously produce the embossed and frosted PC solid sheets.

This kind of embossed and frosted sheet is solid polycarbonate sheet with a texture on one surface. The purpose of texturing is to increase surface abrasion resistance, protect privacy, provide light diffusion, reduce light pollution.

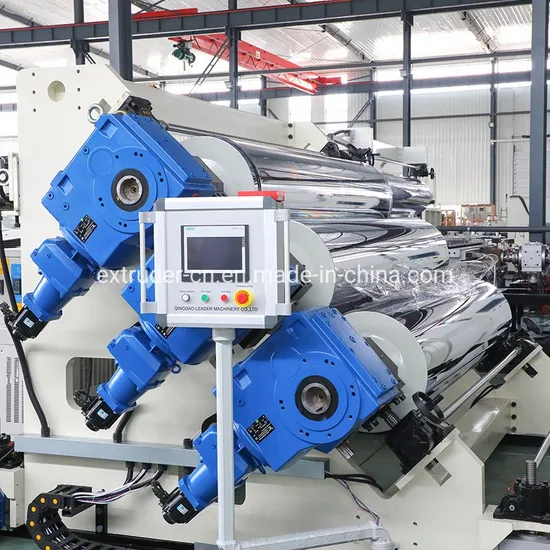

CHINA NO.1 JC TIMES T DIE HEAD THREE ROLLER CALENDARS WITH YASKAWA SERVO CONTROL AND GERMANY NORD DRIVING SYSTEM
HAUL OFF MACHINE AND EDGES CUTTER AND TRANSVERSE CUTTER
SAMPLES FINISHED SHEETS

Products standards
Thickness	1.5-1.8-2-3-4-5-6-8-10-12mm
Width	1220-210mm
Length	6000mm or customized
Density	1.2g/cm3

MAIN TECHNICAL DATA

Main extruder model	120/35	130/35
Main driving motor power	185kw	250kw
Co-extruder model	45/30	45/30
Co-extruder driving motor	11kw	11kw
Sheet width	1000-1560mm	1220-2100mm
Sheet thickness	0.8-8mm	1.5-10-12mm
Max capacity	>400kg/h	>600kg/h

COMPANY INFORMATION AND CERTIFICATIONS:
DELIVERY AND PACKAGING:
OVERSEA TRADE SHOWS:
CONTACT DETAILS:
OTHER KINDS OF PLASTIC SHEET EXTRUSION MACHNE RECOMMANDATION:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
