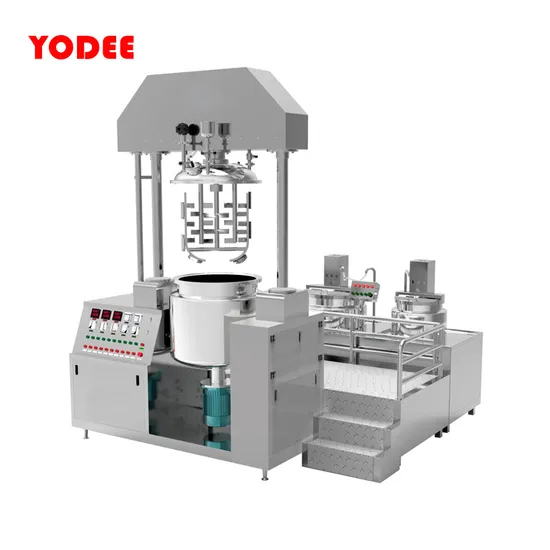

Industrial Hydraulic Lifting Type Electric Heating Bottom Homogenizer Emulsifier Mixing Tank

Product Description

Industrial Hydraulic Lifting Type Electric Heating Bottom Homogenizer Emulsifier Mixing Tank
What is a vacuum homogenizer emulsifier mixing machine?
The vacuum homogeneous emulsifier rotates at high speed through the homogenizing head connected to the engine to shear, disperse and impact the material in a vacuum state, and quickly and evenly distribute one or more phases into another continuous phase. . The strong kinetic energy of the mechanical force is used to make the material in the narrow gap between the stator and rotor, and withstand hundreds of thousands of hydraulic shears per minute, and it is always subjected to centrifugal force, extrusion, impact, tearing and other comprehensive effects instantly and evenly. Disperse and emulsify the material to form a water-in-oil and oil-in-water state, and finally obtain a high-quality product without bubbles, delicate and stable.
Function
1. 0-63r/min stepless frequency conversion speed regulation, the stirring speed can be adjusted.
2. The homogenizer adopts the USA ROSS Brand technology structure, 0-3300R/MIN stepless frequency conversion speed regulation.
3. Three layers of thickened pot body inter layer, steam heating and electric heating can be selected to meet different production needs.
4. The vacuum function can achieve a negative pressure of 0.09Mpa, using advanced mechanical sealing technology from Germany to ensure that the pot can reach a vacuum state for a long time, ensuring that materials can be fully produced under vacuum.
5. Reasonably use the lifting system of the machine to improve production efficiency and effectively avoid secondary material pollution.
6. Setting up raw material pre-treatment pots (oil pots, water pots) can effectively improve production efficiency by up to 60%.
Application
The vacuum homogenization emulsification mixer is applicable to any material that needs to be stirred, homogenized, crushed, suspended and dissolved, such as lotion and mucus, to meet the technical requirements of different products. Widely used in cosmetics, daily chemical, pharmaceutical, biomedical, food and other fields.
If you are unsure whether your product is suitable for our machine, please provide us with photos or information of the product, and we will give you a professional and satisfactory answer.
Optional Configuration Reference
Remark: The structure and configuration of the vacuum homogeneous emulsifier are diverse and varied, it can be combined according to the customer's products. It is a non-standard customized product.
Parameter:
Small Capacity parameter reference:

Capacity	Homogenizer Motor(KW)	Stirring Motor(KW)	Vacuum Pump(KW)	Water Pot Stirring(KW)	Oil Pot Stirring(KW)	Water Pot Heating(KW)	Oil Pot Heating(KW)
15L	0.75	0.37	0.18	0.18	0.18	2	2
25L	1.1	0.37	0.18	0.18	0.18	2	3
50L	2.2	0.75	0.81	0.55	0.55	6	3
100L	4	1.5	0.81	0.55	0.55	9	6
150L	4	2.2	1.5	0.55	0.55	12	6
200L	5.5	3	1.5	0.55	0.55	12	9

Large Capacity parameter reference:

Capacity	Homogenizer Motor(KW)	Stirring motor(KW)	Vacuum pump(KW)	water pot stirring(KW)	oil pot stirring(KW)	water pot heating(KW)	oil pot heating(KW)
250L	5.5	2.2	1.5	0.55	0.55	12	9
300L	5.5	3	3	0.75	0.75	18	9
400L	7.5	4	3	0.75	0.75	18	9
500L	11	4	3	1.1	1.1	18	9
1000L	15	5.5	3.85	1.5	1.5	27	18
2000L	18.5	7.5	3.85	2.2	2.2	36	27
3000L	22	11	11	3	3
5000L	37.5	15	11	5.5	5.5

Contact customized services: All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
Customized Machines Provide Design Drawings
Engineering Case
About YODEE
YODEE was born in Guangzhou, which has the tittle of world processing factory in 2012. Through te design, manufacturing and sales experience accumulated in the past ten years, we have a complete factory, an excellent team and many very important domestic and foreign partners.
YODEE's equipment mainly uses SUS304 and SUS316 stainless steel. After completing the selection of material, YODEE will cut according to the drawings of the machines required by each customer and according to the specifications and sizes. we try to use full-page stainless steel materials instead of spliced stainless steel materials.
Preliminarily rough grinding and polishing product, use sand abrasice to grind the workpiece with rough surface to remove the macro uneven surface. Next, futher pokish on the basis of rough grinding to remove rough grinding marks. so that the surface of the workpiece is gradually smooth and bright. Finally, so that the workpiece can achieve the most ideal brightness and aesthetics.
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Packing
1.Stretch protective film protect machine from collision.
2.The bottom support strengthens.
3.Nailing Complete
4.Loading and shipping
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose.
Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
