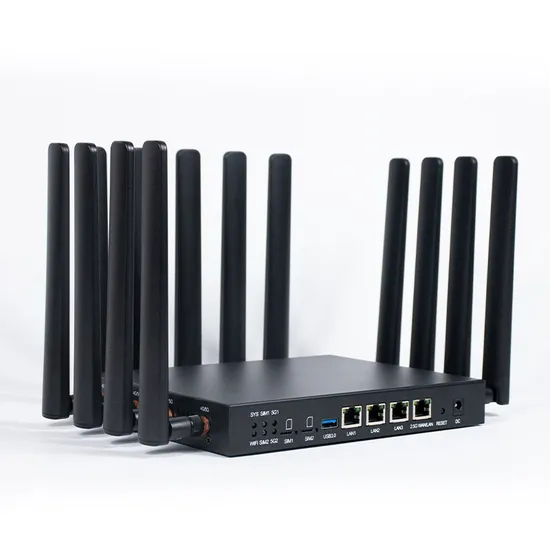

3000Mbps Dual Band Router 5g CPE WiFi6 2.5g Network Port 5g LTE Router with Dual SIM Slot

Product Description

Product Description The 5G WiFi6 router is based on a new embedded platform that meets the growing demands of mobile devices.
The 5G WiFi6 router is NSA/SA dual-mode compatible for all network types worldwide, which means you can enjoy super-fast broadband. Plug and play to enable connectivity anytime, anywhere, and enjoy ultra-fast broadband connectivity anytime, anywhere. 5G WiFi6 routers bring new ways for you to freely and easily experience VR/AR/4K/8K streaming. Built in 802.11ax (Wi Fi 6) technology The 5G WiFi6 router is equipped with 802.11ax (Wi Fi 6) technology, and a single 5G WiFi6 router can provide greater wireless coverage and bandwidth. Meanwhile, 5G WiFi6 routers can also bring higher security and better network performance. Hardware Description Using MT7981B main chip, with a main frequency of up to 1.3GHz; Equipped with an independent MT7976CN WIFI6 chip High speed 1GB DDR4,256MB Nand Flash (16GB/32GB/64GB/128GB EMMC optional) 1 WAN 2.5G adaptive network port, 3LAN 1000 Mbps adaptive network port; Supports "one click flash mode", long press the reset button to enter recovery mode; Built in 2 * M.2 5G module interfaces and 2 * PCIE 4G module interfaces for installing 4G and 5G cellular modules; External 2 standard Nano SIM card slots, reserved for Esim design, can be customized according to customer needs Supports USB 3.0 interface specifications

WS3006 Hardware specifications
Hardware specifications	MT7981B+MT7976CN+MT7531AE dual-core 1.2GHZ DDR4 RAM 1GB SPI NAND flash 128MB(16GB /32GB/64GB/128GB EMMC optional)
WIFI chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless speed	Dual frequency concurrent, with a speed of up to 3000Mbps
Working frequency band	2.4GHz 5.8GHz
4G/5G module	Optional 4G or 5G modules, as well as frequency bands ,support Cat4/6/12/16/20
5G Frequency band	NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
	SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
4G Frequency band	LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
	LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
	LAA B46
UMTS	WCDMA B1/ 2/ 4/ 5/ 8/ 19
GNSS	GPS/ GLONASS/ BDS/ Galileo/ QZSS
5G SA Sub-6 5G NSA Sub-6 LTE WCDMA	Download 2.4 Gbps; Upload 900 Mbps Download 3.4 Gbps; Upload 550 Mbps Download 1.6 Gbps; Upload 200 Mbps Download 42 Mbps; Upload 5.76 Mbps
Antenna	5 x 7dbi High-gain all-directional wifi antenna, 8 x 7dbi High-gain all-directional 4G 5G antenna(Select to the module)
Interface	1*2.5G WAN Port, automatic MDI / MDIX, with LED indicator; 3 * 10 / 100M / 1000M LAN port, automatic MDI / MDIX, with LED, indicator light 1 * USB 3.0 interface 2 * PCI-E module interface 2 * M.2 module interface 2 * Nano SIM card slot (optional ESIM)
LED lamp	Power supply/WIFI/4G-1/5G-1/4G-2/5G-2
Button	1 Reset button
Power adapter	DC 12/3000mA
Maximum power consumption	< 24W
colour	Black
Accessories and packaging	Egg separating paper tray 32 * 21 * 6 cm * 1PCS Full box 43.1 * 28.5 * 34.8 10 pieces Power adapter 12V/3A * 1PCS Category 5 Ethernet cable * 1PCS

Detailed Photos
Company Profile HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included OpenWRT 4G5G wifi router, Vehicle 5G router, outdoor CPE, indoor CPE,MESH Router ,WIFI-6 Router ,4G OTT 4G5G Modem.HUASIFEI .with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries.

Packaging & Shipping
FAQ Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How long is the production lead time ?
A: Generally our lead time is approximately 7 days depending on the quantity,however if your order has a hot deadline we will do our absolute best to meet your deadline.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
