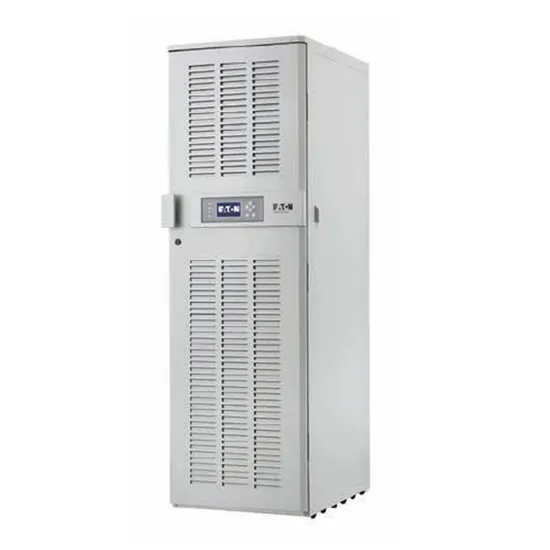

Eaton 9ehd-33 20/30/40/60/80/100kVA 380V Rack Tower Double Conversion Pure Sine Wave Three Phase Online UPS for Computers/Servers/Data Rooms/Hospitals Equipmen
| US$5,876.00-39,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Eaton 9EHD-33 UPS
Protection
Overvoltage
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Eaton
Product Name
Eaton 9ehd UPS
Power Level
10~200kVA
Rated Voltage
380/400/415VAC
Product Type
Tower UPS
Input Type
Three-Phase + PE
Rated Frequency
50/60Hz
Double-Conversion Mode
up to 91%
Eco Mode
up to 96%
Input Voltage
380/400/415VAC
Output Voltage
380/400/415VAC
Trademark
Eaton
Origin
China
HS Code
8504402000
Production Capacity
1000
Product Description
93HD-10~80K 33 Industrial UPS Specifications| Capacity 384Vdc | Rated capacity | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 50kVA | 60kVA | 80kVA | ||||||||
| Active power | 9kW | 13.5kW | 18kW | 27kW | 36kW | 45kW | 54kW | 72kW | |||||||||
| Mains | Rectifier topology | 6 or 12 pulses | |||||||||||||||
| Mains input and bypass input | Dual input | ||||||||||||||||
| Input type | Three-phase + PE | ||||||||||||||||
| Rated AC input | 380/400/415VAC | ||||||||||||||||
| Voltage range | 285VAC ~ 498VAC | ||||||||||||||||
| Rated frequency | 50/60Hz | ||||||||||||||||
| Frequency range | 45-66Hz | ||||||||||||||||
| Bypass | Rated AC input | 380/400/415VAC (three-phase + neutral) | |||||||||||||||
| Voltage range | -40% ~ +20% adjustable | ||||||||||||||||
| Frequency range | 50/60Hz (± 2.5%, ±5%, ±10%, ±20% adjustable) | ||||||||||||||||
| Output | Rated AC output | 380/400/415VAC (three-phase + neutral) | |||||||||||||||
| Voltage tolerance (Static) | ±1% | ||||||||||||||||
| Power factor | 0.9 | ||||||||||||||||
| Voltage tolerance (Dynamic) | ±5% (variable within 0~100% load) | ||||||||||||||||
| THDv | < 1%(100% linear load) | ||||||||||||||||
| Voltage dynamic response | < 20ms | ||||||||||||||||
| Synchronization range | ±2 Hz by default ( ±0.5~ ± 3Hz adjustable) | ||||||||||||||||
| Inverter overload capacity | Continuous operating at 110% load; 10-min operating at 125% load; 1-min operating at 150% load; | ||||||||||||||||
| Frequency stability | ±0.05% | ||||||||||||||||
| Waveform | Pure sine wave | ||||||||||||||||
| Efficiency | Double-conversion mode | Up to 92% | |||||||||||||||
| ECO mode | Up to 96% | ||||||||||||||||
| Parallel system | Parallel Unit | Up to 8 | |||||||||||||||
| Battery configuration | Battery quantity | VRLA battery: 30 - 32 blocks | |||||||||||||||
| Dimension | Depth (mm) | 720 | 750 | ||||||||||||||
| Height (mm) | 1100 | 1400 | |||||||||||||||
| Width (mm) | 6-pulse | 560 | 800 | ||||||||||||||
| 12-pulse | 970 | 1270 | |||||||||||||||
| Environmental and general parameters | Display interface | 7-inch touch panel with LED indicator | |||||||||||||||
| Communication interface | Modbus RS232/RS485 standard; Eaton industrial network card INDGW-M2 optional | ||||||||||||||||
| Standard protection level | IP20, Up to IP42 optional | ||||||||||||||||
| Temperature | 0 ~ 40ºC | ||||||||||||||||
| Humidity | 0 ~ 95% (non-condensing) | ||||||||||||||||
| Noise | ≤57dB | ≤60dB | ≤63dB | ||||||||||||||
| Compliance | Safety | IEC60950-1,IEC62040-1-1 | |||||||||||||||
| Electromagnetic compatibility | IEC62040-2,IEC62040-3 | ||||||||||||||||
| Certification | CE/YDT1095-2018 | ||||||||||||||||
| Capacity 384Vdc | Rated capacity | 100kVA | 120kVA | 160kVA | 200kVA | |
| Active power | 90kW | 108kW | 144kW | 180kW | ||
| Mains | Rectifier topology | 6 or 12 pulses | ||||
| Mains input and bypass input | Dual input | |||||
| Input type | Three-phase + PE | |||||
| Rated AC input | 380/400/415VAC | |||||
| Voltage range | 285VAC ~ 498VAC | |||||
| Rated frequency | 50/60Hz | |||||
| Frequency range | 45-66Hz | |||||
| Bypass | Rated AC input | 380/400/415VAC (three-phase + neutral) | ||||
| Voltage range | -40% ~ +20% adjustable | |||||
| Frequency range | 50/60Hz (± 2.5%,±5%,±10%,±20% adjustable) | |||||
| Output | Rated AC output | 380/400/415VAC (three-phase + neutral) | ||||
| Voltage tolerance (Static) | ±1% | |||||
| Power factor | 0.9 | |||||
| Voltage tolerance (Dynamic) | ±5%(variable within 0 ~ 100% load) | |||||
| THDv | < 1%(100% linear load) | |||||
| Voltage dynamic response | < 20ms | |||||
| Synchronization range | ±2 Hz by default ( ±0.5 ~ ± 3Hz adjustable) | |||||
| Inverter overload capacity | Continuous operating at 110% load; 10-min operating at 125% load; 1-min operating at 150% load; | |||||
| Frequency stability | ±0.05% | |||||
| Waveform | Pure sine wave | |||||
| Efficiency | Double-conversion mode | Up to 92% | ||||
| ECO mode | Up to 96% | |||||
| Parallel system | Parallel Unit | Up to 8 | ||||
| Battery configuration | Battery quantity | VRLA battery: 30 - 34 blocks | ||||
| Dimension | Depth (mm) | 855 | ||||
| Height (mm) | 1900 | |||||
| Width (mm) | 6-pulse | 890 | 1245 | |||
| 12-pulse | 1415 | 1770 | ||||
| Environmental and general parameters | Display interface | 7-inch touch panel with LED indicator | ||||
| Communication interface | Modbus RS232/RS485 standard; Eaton industrial network card INDGW-M2 optional | |||||
| Standard protection level | IP20, Up to IP42 optional | |||||
| Temperature | 0 ~ 40ºC | |||||
| Humidity | 0~95% (non-condensing) | |||||
| Noise | ≤67dB | ≤69dB | ||||
| Compliance | Safety | IEC60950-1,IEC62040-1-1 | ||||
| Electromagnetic compatibility | IEC62040-2,IEC62040-3 | |||||
| Certification | CE/YDT1095-2018 | |||||
