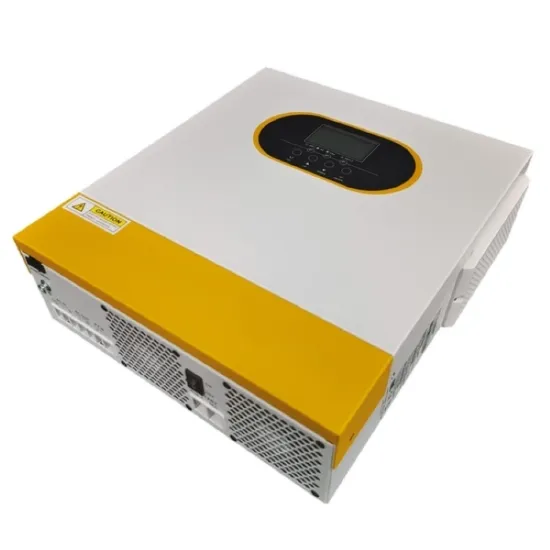

3.5kw Hybrid Solar Inverter for Reliable Backup Power

Product Description

Product DescriptionEM Series ( PV 60-500VDC )
3.5KW / 5.5KW / 6.2KW 220V / 230Vac Output
Features
- Efficiently activates lithium batteries using PV or utility power, ensuring seamless energy management.
- Fully compatible with lifepo4 batteries through advanced RS485 communication for optimized performance.
- Delivers a pure sine wave output, offering smooth and stable power for all your needs.
- Boasts a power factor of 1.0, maximizing energy efficiency and performance.
- Accommodates PV input voltage ranging from 60VDC to 500VDC, offering versatile application.
- Equipped with built-in MPPT technology, available in 60A, 100A, or 120A options for enhanced solar charging.
- Capable of operating without a battery, providing flexibility and adaptability in various situations.
- Designed with a detachable dust cover, perfect for maintaining performance in harsh environments.
- Options for WIFI remote monitoring, enabling you to keep track of performance with ease.
- Supports multiple output priorities: UTL, SOL, SBU, SUB, ensuring tailored energy solutions.
- EQ function enhances battery performance, extending the lifecycle and optimizing efficiency.Product Parameters

Model	EM3500-24L				EM5500-48L	EM6200-48L
Capacity	3.5KVA / 3.5KW				5.5KVA / 5.5KW	6.2KVA / 6.2KW
Parallel Capability	NO
Lithium Battery Activation	Yes (By PV only)
Lithium Battery Communication	YES (RS485)
Input
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency	50/60 Hz (Auto Sensing)
Output
Nominal Voltage	220/230VAC ±5%
Surge Power	7000VA				11000VA	12400VA
Frequency	50/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV)	96%
Peak Efficiency (Battery to INV)	93%
Overload Protection	5s@>=140% Load; 10s@110%~140% Load
Crest Factor	3:1
Admissible Power Factor	0.6~1 (Inductive or Capactive)
Battery
Battery Voltage	24VDC				48VDC	48VDC
Floating Charge Voltage	27VDC				54VDC	54VDC
OverCharge Protection	33VDC				63VDC	63VDC
Charge Method	CC / CV
Solar Charger & AC Charger
Solar Charger Type	MPPT
Max. PV Array Power	4000W				5500W	6500W
Max. PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC ~ 500VDC
Max. Solar Input Current	15A				18A	27A
Max. Solar Charge Current	100A				100A	120A
Max. AC Charge Current	80A				80A	80A
Max. Charge Current	100A				100A	120A
Physical
Dimensions	358*295*100 mm				438*295*105 mm	438*295*105 mm
Package Dimensions	465*380*175 mm				560*375*185 mm	560*375*185 mm
Net Weight	7 KGS				9 KGS	9 KGS
Communication Interface	RS232 + RS485
Environment
Operating Temperature Range	-10 ~ 50ºC
Storage Temperature	-15 ~ 50ºC
Humidity	5% to 95% Relative Humidity (Non-Condensing)
