6211472200 6211472250 Oil Filter Atlas Copco Air Compressor Replacement Filter

Product Description

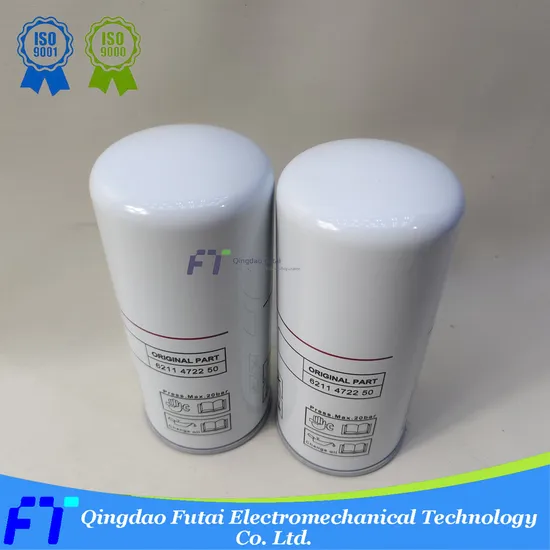

6211472200 6211472250 Oil Filter Atlas Copco Air Compressor Replacement Filter
Product Description
Common causes of screw air compressor oil clogging failure:
1. The surrounding environment of the screw air compressor. There are corrosive gases in the surrounding environment of the screw air compressor. For example, in some occasions, sulfide, thinner, cleaning chemicals, etc. will volatilize in the air. The high temperature of the machine itself will accelerate the oxidation of the oil. Once these gases Entering the screw air compressor system, there is a chemical reaction with the engine oil, resulting in carbon deposits and sludge, etc. Some of the impurities enter the oil circulation system and are intercepted by the oil filter, and the other part of the impurities rises to the oil with the oil-gas mixture. When the gas passes through the oil, these Impurities stay on the oil filter paper, block the filter holes, and increase the resistance of the oil, so that the oil needs to be replaced in a short period of time.
2. Qualified air filter, oil filter, and engine oil are not used, one or more of them exist. The air filter with poor filtration accuracy will prevent some dust particles in the air from being intercepted, and will directly enter the screw air compressor system, and the oil filter and oil component load will be too large, resulting in blockage; impurities and oil oxides entering the screw air compressor system , worn metal particles, etc. Due to the poor filtration accuracy of the oil filter, a part of the intercepted oil filter filter layer, another part of the impurities has been continuously in the machine until it rises to the oil, and stays in the filter layer of the oil after separation, causing the oil to be removed prematurely. Blockage: engine oil with poor oxidation resistance should not be used, even if the working time is short, it will produce carbon deposits and jelly, which will block the oil.
3. There is leakage on the pipeline between the air filter and the air inlet of the main engine. The common causes of leakage are: the air filter is not installed properly; the contact area of the air filter assembly is uneven; the contact surface between the air filter and the assembly has dirt attached to it, resulting in leakage; ; Air filter or air filter assembly rupture, etc.
4. Excessive moisture in the oil filter material will cause the filter material to swell and shrink, reducing the effective separation area of the oil, resulting in an increase in the resistance of the oil and premature blockage of the oil

Product Name	Oil Filter
Product Number	6211472200 6211472250
Brand	QINGDAO FUTAI
Material	Imported Material
MOQ	1 PC
Delivery time	3-5 days
Package	Accordling Customer Request
Filtration efficiency	99.99%
Specification	Standard
Warranty	3000-4000 hours
Condition	New
Dimension	Standard

Detailed Photos
Product Superiority
Adopt anticorrosion efficient condensation of superfine fiber material as the main body, filter the system filter filter bed combination prediction filter layer, superfine fiber layer, support layer, filter layer and gravity sedimentation, etc, make the compressor output above 3 microns of solid particles in the air can filter out, all is the extremely small mu is about 0.01-1 m of the disintegration of oil and gas dissolved in through the filter is condensed into larger droplets, accumulate in the bottom of the filter, again through the return pipe of siphon filter at the bottom of the sunken place back to lubrication system so that the compressor discharge more pure and oil-free compressed air. Cross reference
Compatibility with other filters:

Abac 6211472250	Alup 6211472250	Atlas Copco 1622783600	Atlas Copco 1613610591
Atlas Copco 1613610501	Atlas Copco 1613610500	Atlas Copco 1613610590	Boge 558000301P
Bomag 5710634	Bottarini 220911		Ceccato 640608
Ceccato 6211472200	Ceccato 2202200271	Ceccato 2202260271	Chicago Pneumatic 6611472250
Chicago Pneumatic 2202260271	Chicago Pneumatic 6211472200	Chicago Pneumatic 6211472250	Chinook 11700670
Compair-Demag 98262220	Delsa DS 1330	Fai Filtri CTT-070-3-3-P10-C	Fiac 7211141300
Filsan FY6106	Fini 048221000	Gardner Denver 81612679	Gardner Denver 81849079
General Motors 7984864	HiFi Filter SO 040	Ingersoll Rand 92740950	Ingersoll Rand 54672654
Ingersoll Rand 92118678	John Deere AZ22878	Kaeser 6.1981.0	Kaeser 6.1981.1
Kaeser 619811	Kaeser 619810	Mahle 5081732	Mann Filter W 962/2
Mann Filter W 962	Mann Filter W 962/14	Mark 2202260271	Mark 6211472200
Mark 640608	Noitech NO 014780	Noitech NO 104380	Noitech NO 010780
Orenstein + Koppel (O&K) 046826	ORLIK W962/2	PUSKA 2202260271	PUSKA 6211473050
	Renner 10295	Shamal 11700670	Sotras SH 8147
Stenhoj 213129	T. G. Filter TGO 202	T. G. Filter TGO 200	Worthington 6211425814

Tips:
This is only a part of the part numbers, many oil separator filters P/N are not listed, in addition there are replacements filters for many other air compressor brands.
Company Profile
Now over 100,000 quality filters including compressed air filters, Hydraulic Filters and complete filter housing assemblies at wholesale discounts.
We offer OEM products as well as high quality replacements, engineered to precise OEM specifications and guaranteed to match the exact form, fit and function as the original equipment.
Our company is committed to continuous innovation and further improvement to create, improve the efficiency and productivity of excellence, to achieve the highest level of reliability and performance. Company Services
1. Provide professional advice on the design of customers; Or according to the customer's request to provide solutions.
2. All filter element will be test before delivery, OEM and ODM order are accepted, Any kind of logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. Professional online service; Professional before-sales and after-sales team to deal with your question on timely;
5.Supply sample list, reliable logistics guarantee, cooperation for many year,you only need to bear the freight;
6.If you have any question, please contact us freely by E-mail or Telephone. Certifications
Company team
Our company is located in the beautiful coastal city of Qingdao,is a professional manufacturer of air compressor filters and separators,
We repect the enterprise spirit of "steadyfastness,hard work and responsibility" and creat a good corporate environment based on the operation principle of "Integrity,reliability and innovation". With the survival idea of "perfect technology, good service and excellent quality",
We always adhere to customer first,
aim at serving customer sincerely and touching customer with our service.
We plunge ourselves to provide clear and sustainable comprssed air to our customer,
meanwhile constantly pursue to save the sunning cost of compressor system for them.
Profession, concentration, focus is our corporate philosophy. Packaging & Shipping
FAQ
Q1.What is your packing clause?Answer:generally, we put our goods in neutral white boxes and brown cartons. Or customize any kind of packing according to your request. If you have registered a patent legally,We can put the goods in your brand packing box after receiving your authorization.
Q2.What is your payment condition?Answer: T / T 30% as a margin, 70% before delivery.Before the balance is paid, we will show you the photos of the products and packaging.
Q3.What is your delivery condition?Answer: EXW, FOB, CFR, CIF, DDU.
Q4.What's your delivery time?A:Generally speaking,it takes 30 to 60 days after receiving the advance payment.The exact time of delivery depends on the items and quantities of your order.
Q5. Can you make it according to the sample?Answer:Yes,we can produce it through your sample or technical drawings.We can build molds and fixtures.
Q6.What is your sample policy?Answer:if we have spare parts in stock, we can provide the sample, but the customer must pay the sample cost and the cost of the sample.Express delivery cost.
Q7.Did you test all the goods before delivery?Answer: Yes, we have 100% tests before delivery.
Q8: How do you make our business a long and good relationship?Answer: 1. We maintain good quality and competitive price to ensure our customers benefit.
