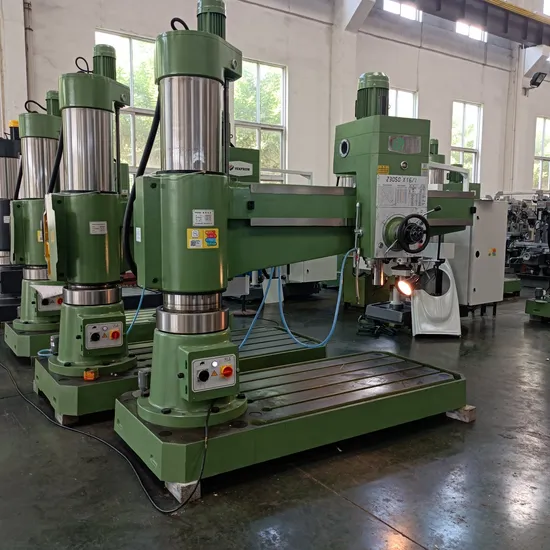

Z3050 Radial Drilling Machine Is The First Choice for Industrial Drilling

Product Description

Product Description
The main function
(1) The radial arm drill is suitable for drilling, reaming, reaming, countersinking, and tapping on medium and large metal parts. The main functions of the hydraulic radial arm drill are the handles, buttons and other operating components that are concentrated in the headstock. superior.
(2) The outer column drives the rocker arm to rotate around the inner column ±180º;
(3) The rocker arm rises and falls along the outer column;

Detailed Photos
Product Parameters

	unit		Z3050x16/1
Worktable :-
Dimensions of Box Table	mm		630x500x500
T/T slot of box table	no		5/22/150
Dimensions of Base	mm		2400x1000x200
Working Surface of Base Plate	mm		830X1660
T/T slot of base			4/28/180
Max. load of worktable	kg
Machining range :-
spindle axis to column	mm		350-1600
spindle nose to table surface	mm		320-1220
spindle head travel(horizontal)	mm		1250
Spindle :-
Spindle taper			MT5
quill travel	mm		315
Max.drilling diameter	mm		50(steel)
Max.tapping diameter	mm		M16*2(steel) M20*2.5(Cast iron)
spindle Speed Range /steps	rpm		25-2000/16setps
Max.spindle torque	Nm		500
spindle feed/steps			0.04-3.2/16steps
Motor:-
spindle motor power	kw		4
elevating motor for Arm	kw		1.5
coolant pump	kw		0.09
Others:---
clamping type			Hydraulic clamping for longitudinal,vertical and radial movement
overall dimension (L*W*H)	mm		2480x1040x2750
package dimension (L*W*H)	mm		2580x1140x2550
Machine tool net weight	kg		3500

Other model parameters:

Specifications	Units	Z3080×25	Z3063×20/1
Max. drilling diameter	mm	80	63
Distance between spindle axis and column	mm	500-2500	450-2000
Distance spindle nose and working surface of base	mm	550-2000	400-1600
Spindle travel	mm	450	400
Spindle taper	Morse No.	6#	5#
Range of spindle speeds	rpm	16-1250	20-2000
Number of spindle speeds	step	16	16
Range of spindle feeds	mm/r	0.04-3.20	0.04-3.20
Number of spindle feeds	step	16	16
Table size	mm	1000×800	800×630
Distance of headstock horizontal movement	mm	2000	1600
Spindle motor power	KW	7.5	5.5
Machine weight	Kg	11000	7000
Overall dimension	mm	3730×1400×4025	3080×1250×3400

Instructions
Radial drilling machine is a kind of general-purpose drilling equipment, which has the characteristics of wide range of use, flexible and convenient operation, etc. How does radial drilling machine drill holes on general workpieces.
1. Draw a line on the workpiece according to the requirements of the drawing, and punch the hole after inspection. The sample punching hole should be made larger so that the drill bit is not easy to deviate from the center.
2. Adjust the required speed and feed rate, and prepare the required cutting fluid.
3. According to the material characteristics and process requirements, sharpen the cutting angle of the drill bit.
4. Align the drill tip with the center of the drill hole. When setting the knife, observe from two vertical directions.
5. If the drilling is deviated, it must be corrected in time. The method of correction is: use oil groove chisel to chisel several grooves on the opposite side of the hole deviation for larger holes, and use sample punching for smaller holes. Drilling small holes can also be raised with horns in the direction of deflection. Then try drilling until the round dimple is corrected, remove the pad iron, and continue drilling.
6. When drilling through holes, it is best to switch to manual feeding when drilling through quickly.
7. If the hole cannot be drilled, the automatic feed stopper can be adjusted according to the hole depth before drilling.
8. When drilling deep holes, when the hole depth reaches more than 3 times the diameter, the drill bit must be withdrawn several times to remove chips.
9. When the drilling diameter is less than 35mm, it can be drilled at one time, and when it is larger than 35mm, it can be drilled twice. At this time, the diameter of the pre-drilled hole is 0.7 times the machining diameter.
