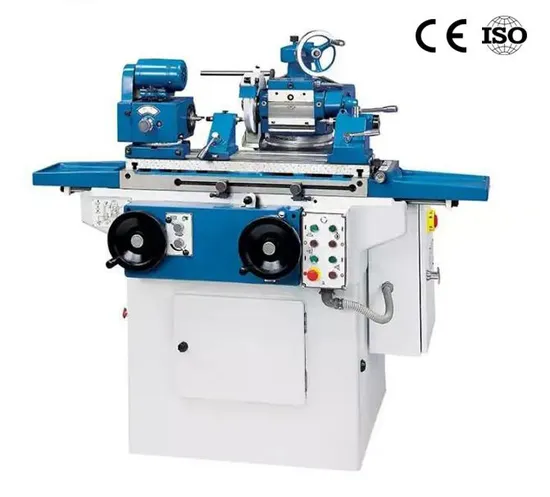

Senmo Multi-Purpose Tool Grinding Machine Universal
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
2M9120A
Type
Multi-Use Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Max. Workpiece Diameter
200mm
Max. Workpiece Length
500mm
Tool and Cutter Sharpening
200mm
Taper of Spindle Bore
Mt2
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84602911
Product Description
| Cylindrical Grinding Machine 2M9120A Feature |
| ·Grinding machine model multi grind is a kind of universal machine. It has both the characters of a universal cylindrical grinding machine and the characters of a tool and cutter grinding machine and is suitable for external grinding internal grinding and surface grinding as well as for sharpening genera cutting tools such as various milling cutters, reamers, pinion cutters and straight fluted hobs, etc. ·This machine is suitable for common small machine plants, tool workshops, repair workshops and research institutes of science and technology. |
| Specifications | 2M9120A |
| Max. workpiece diameter | 200mm |
| Max. workpiece length | 500mm |
| Capacity | |
| Workpiece diameter external grinding | Φ5-50mm |
| Workpiece diameter internal grinding | Φ10-50mm |
| Tool and cutter sharpening | Φ200mm |
| Workpiece length external grinding | 400mm |
| Workpiece length internal grinding | 75mm |
| Tool and cutter sharpening | 200mm |
| Surface grinding length x width ( being viced ) | 200x50mm |
| Workpiece weight | 10kg |
| Workhead | |
| Height of center | 100mm |
| Center distance between workhead and tailstock | 430mm |
| Center distance between left right tailstock | 500mm |
| Taper of spindle bore | MT2 |
| Speeds of spindle (50HZ) | 110, 200, 300rpm |
| Swivel | ±90° |
| Chuck diameter | Φ100mm |
| Wheelhead | |
| Max. vertical travel | 200mm |
| Max. transverse travel | 200mm |
| Vertical feed per revolution of handwheel | 2mm |
| Vertical feed per division of handwheel | 0.01mm |
| Cross feed per revolution of handwheel, fine/coarse | 1/4mm |
| Cross feed per division of handwheel, fine/coarse | 0.005/0.02mm |
| Swivel in horizontal plane | ±90° |
| Grinding wheel spindle speed (50HZ) | 2500rpm(60HZ 2950rpm) |
| Max. grinding wheel diameter x width x bore diameter | Φ200x20xΦ75mm |
| Internal grinding spindle | |
| Internal grinding spindle | 13500rpm(60HZ 16000rpm) |
| Min. grinding wheel diameter x width x bore diameter | Φ10x10xΦ3mm |
| Max. grinding wheel diameter x width x bore diameter | Φ25x20xΦ6mm |
| Table | |
| Max. travel | 480mm |
| Traverse speed | ≤7m/min |
| Travel per revolution of handwheel | 17mm |
| Travel per revolution of knob | 126mm |
| Max. swivel of upper table | +45°~-30° |
| Tailstock | |
| Taper in center bore | MT2 |
| Sleeve travel | 14mm |
| Motor power | 2.905Kw |
| Overall dimension (LxWxH) | 1520x1142x1338mm |
| Packing dimension (LxWxH) | 1860x1360x1590mm |
| N.W./G.W. | 1350/1700kg |
| Work accuracy | |
| External | 0.0015mm |
| Internal | 0.0025mm |
| Cylindricity | 0.005mm |
| Surface roughness external | Ra0.32μm |
| Surface roughness internal | Ra0.63μm |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
