Plastic PVC One Output Edge Banding PVC Profile Production Line PVC Profile Making Machinery for Sale

Product Description

Product Description

PVC Wood Profile Production Line
PVC Profile Making Machine
PVC Window and Door
PVC Profile Making Machine
The pvc windows line is mainly used for producing various sizes of PVC profiles, pvc cable trunking, ceiling panel,window sill, WPC decking, WPC flooring and other shaped profiles.

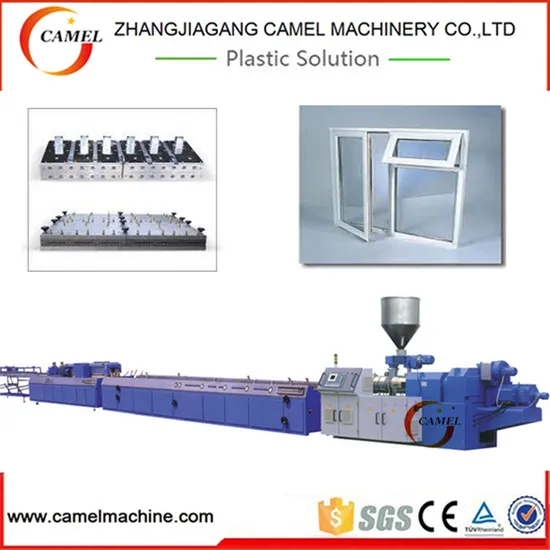

Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
Features for pvc windows line:
* PLC control system is available
* All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc
* Over current protective of motor
* With online protection film wrapping device

Machine Configuration for pvc windows line:

No	Unit machine	unit
1	Powder Charger (for extruder)	1set
2	Conical Twin Screw Extruder	1set
3	Vacuum calibrating machine	1set
4	Haul off machine together with cutter	1set
5	Stacker	1set
6	Mold (according to the drawing )
7	Control cabinet	Included
8	Spare parts	Free /set

Auxiliary machines:
1.Mixing unit
2.Crusher and milling machine
3.Chiller and air compressor etc

Process flow:
Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool
molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing

Technical data:

Model	Max wide(mm)	Extruder model	Max output(kg/h)	Drive motor power(kw)
CMLM108	108	SJZ51/105	100	18.5
CMLM180	180	SJZ51/105 or SJZ55/110	100/150	18.5/22
CMLM240	240	SJZ65/132	250	37
CMLM300	300	SJZ65/132	250	37
CMLM400	400	SJZ80/156	350	55
CMLMC500	500	SJZ80/156	350	55
CMLM600	600	SJZ80/156	400	75

Our service

We will test machines in our factory before delivery. Customer check machines running in our factory, after
customer is fully satisfied with the quality, then delivery, when machines arrive in customer's factory, we will send
our engineer to test the machine in customer's factory
We supply machines technical support, material formulation; guarantee machines and spare parts supply Company Profile

Certifications

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
Packaging & Shipping
