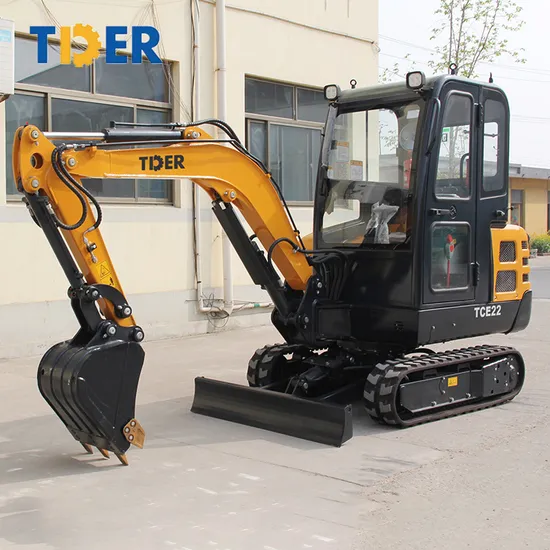

Tder High Performance 2ton 2.2ton 3ton Mini Crawler Excavator with Cabin

Product Description

Product Parameters

Model	TCE10	TCE18	TCE20	TCE22
Operating Weight	950kg	1800kg	1900kg	2200kg
Rated Power	7kW/3000rpm	18.1kW/2000rpm	14.2kW/2200rpm	22.1kW/2200rpm
Engine	KOOP KD192F-1	Laidong 3TE25	Kubota	Laidong 3TE30
Bucket Capacity	0.023m³	0.06m³	0.07m³	0.1m³
Max. Digging Radius	3065mm	3860mm	4040mm	4370mm
Max. Digging Depth	1715mm	2050mm	2400mm	2450mm
Max. Digging Height	2600mm	3370mm	3700mm	2290mm
Max. Dumping Height	1830mm	2390mm	2440mm	3700mm
Overall Width	880mm	3800mm	3555mm	4080mm

*Please contact us if you need more detailed parameters.
Product Description
1. The advanced hydraulic system not only provides the best balance between power and efficiency, but also gives you the controls you need to meet your precise digging requirements.

2. Valve priority allows hydraulic pressure and flow to the levels you set for fast light to medium duty cycling.

3. Accessible controls are located in front of the operator for comfortable operator control of the excavator.

4. The whole machine can be equipped with quick-change line, auxiliary two-way line, auxiliary one-way line and auxiliary rotary line, which expands the function of the whole machine.

5. With mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved.

6. Simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding.
Packaging & Shipping
*All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing machines.
*We also offer wooden packing way to make the machines safer.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications

Company Profile
Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback

Attachments
SPARE PARTS
Professional Service
TDER offers customized services.
You can freely change the color, engine, LOGO and more.
"TDER makes every mechanical gear customizable."
FAQ 1. Why choose us? As a manufacturer, TDER industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services. 2. What is the product range of our factory ? Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? TDER industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
