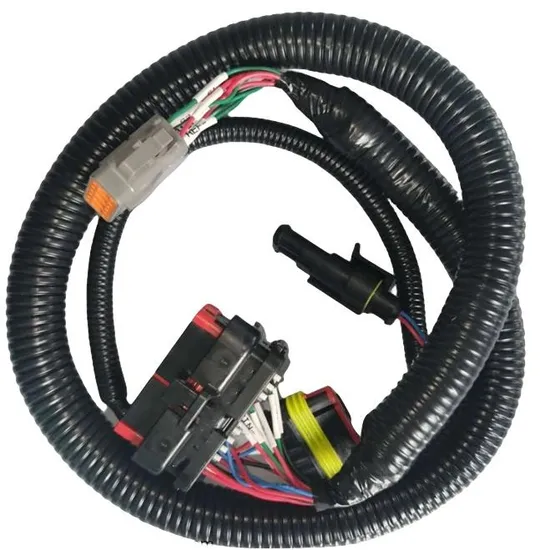

EV Cable Harness Assembly Custom Electric Vehicle Wire Harness Manufactures

Product Description

Product Description 1,Product description

Product Name	Custom Wiring Harness Electric Vehicle High Voltage Cable Harness Assembly
Materials	Wire harness can be UL1007, UL1015 and AVSS, UL,CE, CCC,SGS,RoHs,VED, etc and pure copper
Length	According to the customers' requirements
Insulation	PVC,PE, PFA TEFLON,Silicone,XLPVC etc….
Nominal Voltage	300V,300/500V,600V,30V,450/750V etc…
Temperature Range	-30ºC~+80ºC,-30ºC~+90ºC,-30ºC~+105ºC,-30ºC~+70ºC/90ºC,105/180ºC, 200ºC etc….
Application	Automotive,Electrical, Industry
Order Quantity	Small quantity can be accepted, such as 100pcs
Samples	FREE
Lead time	Small orders under 500pcs is 5-7days,exceed 1000pcs 7-15days
Test	100% test before shipment
Payment	T/T, L/C,PayPal,Western Union
Service	OEM and ODM products are acceptable
Company Advantage	1, More than 11 years of automotive wiring harness production experience,rich experience in export.
	2,manufacture and trade integration
	3, Short delivery time, reasonable price, good quality.
	4, Have a professional technical team, excellent quality management, advanced production equipment.
	5,Ensure that all products are made of pure copper, 100% tested before shipment

Our company , ShenZhen ZhongJian TianHang Electronics CO, LTD is a professional manufacture of CustomAutomotive Wire Harness. Two or three sample can ship to you free ( if no need open
mold ), and you should send us real product or technical drawing.Can custom the Automotive Wire
Harness with 5 star as the following:
Cable Knowledge
UL 1007 Technical data with UL 1007Rated voltage:300V
Rated Temperature:-40ºC-80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min Specifications with UL 1007

Specification	Conductor structure	Conductor outer diameter	Average insulation thickness	Insulation outer diameter	Cable net weight	Maximum conductor DC resistance (20ºC)
		(mm)	(mm)	(mm)	kg/km	Ω/km
26AWG	7/0.16	0.48	0.38	1.3±0.05	2.9	150
24AWG	7/0.20	0.60	0.38	1.5±0.05	3.8	94.2
22AWG	7/0.254	0.76	0.38	1.6±0.05	5.3	59.4
20AWG	7/0.32	0.96	0.38	1.8±0.10	7.5	36.7
18AWG	16/0.254	1.15	0.38	2.0±0.10	10.2	23.0
16AWG	26/0.254	1.49	0.38	2.4±0.10	15.4	14.6

Certificates with UL 1007: CE, Rohs, Reach, ULUL 1015
Technical data with UL 1015
Rated Voltage : 600V
Rated Temperature : 105ºC
Bare or Tinned, Stranded or Solid Conductor
Conductor : 30AWG~1/0AWG
Insulation : Extruded PVC
For internal wiring of electronic and electrical equipment.
Specifications with UL1015

Specification	Conductor structure	Conductor outer diameter	Average insulation thickness	Maximum conductor DC resistance (20ºC)
		(mm)	(mm)	Ω/km
26AWG	7/0.16	2.05 mm	0.79 mm	45.2 QKM max
24AWG	11/0.16	2.20 mm	0.79 mm	29.3 Q/KM max
22AWG	17/0.16	2.40 mm	0.79 mm	16.7 2/KM max
20AWG	21/0.18	2.55 mm	0.79 mm	10.5 2/KM max
18AWG	34/0.18	2.80 mm	0.79 mm	6.64 2/KM max
16AWG	26/0.255	3.10 mm	0.79 mm	4.18 Q/KM max
14AWG	41/0.255	3.50 mm	0.79 mm	2.62 Q/KM max
12AWG	65/0.255	3.90 mm	0.79 mm	1.65 2/KM max
10AWG	105/0.255	5.10 mm	0.79 mm	1.04 Q/KM max

Certificates with UL 10 15: CE, Rohs, Reach, UL
AVSS Japanese Standard Automotive Cable
