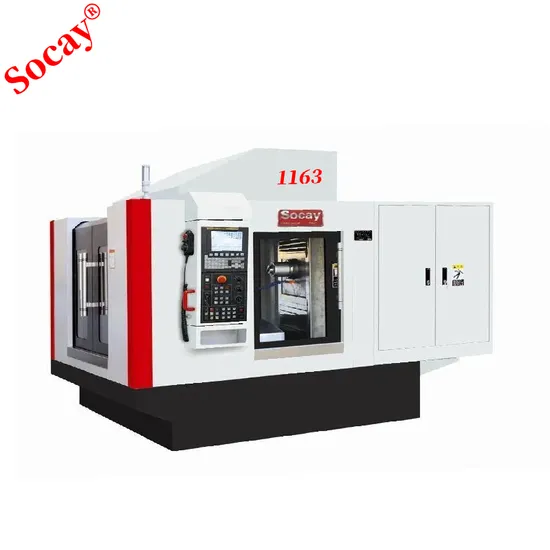

High Speed Custom Axis Horizontal CNC Machining Center Hmc1000t for Precision Milling and Drilling of Large Metal Components

Product Description

Socay®

Socay Precision Machinery
Horizontal Machining center performance characteristrics - The base adopts the popular inverted"T" type layout, and the overall structure is rigid. The whole stroke does not produce a subversive moment.
- The base casting is machined with high-precision five-sided gantry, which can complete five sided milling, drilling and tapping in one setup, reducing the clamping error and improving the machining accuracy.
- The lead screw adopts agroup of 60°angular contact ball bearings, double support and pre-stretching to ensure the transmission precision roller guide rail, which can withstand heavy load cutting and has good shock absorption.
- Adopt Taiwan high-precision spindle with spindle air curtain protection device to ensure stable spindle accuracy and long life.
- CNC rotary table, indexing table, exchange table optional.
The machine is a wall panel structure design, mainly composed of base, wall panel, slide, spindle box and other main components, and equipped with hydraulic system, cooling chip removal system, lubrication system and electrical system, improve the processing efficiency and machine utilization. The electrical system has five axis control and five axis linkage function.
HMC Machine Standard Details:

MACHINE CONSTRUCT 1.High strength high quality HT300 cast iron 2.Inverted T-type structure WORK TABLE One point per degree CNC rotary single worktable as standard TAIWAN PRECISION SPINDLE 1. Taiwan BT50 Spindle 6000rpm with ring cooling 2. Passed dynamic balance ISO rating test LEAD SCREW AND COUPLING 1 TAIWAN HIWIN famous brand lead screw, 2. lead screw bearing using SKF or NACHI bearing, 3. coupling YC directly connected TOOL UNCLAMP CYLINDER Taiwan spindle Tool unclamp cylinder SCHNEIDER ELECTRICAL COMPONENTS 1. with Schneider safety electrical components 2. quick plug as standard AIR GUN AND WATER GUN High-pressure air guns and water guns CHIP CONVEYOR Standard equips one chain chip conveyor and two screw chip conveyor RENISHAW LASER INTERFEROMETER Each machine passed Renishaw laser interferometer testing BT50 MILLING CHUCK Standard with BT50 milling chuck .

CONTROL SYSTEM Standard: FANUC controller OPTICAL RULERS Option 0.001 degree worktable and optical scales to achieve higher positioning accuracy TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm 30 tool magazine . 2. tool change time only 2-3 seconds. TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI COUNTERWEIGHT AND AIR STORAGE TANK Use a nitrogen balance cylinder to counterweight and Air storage tank to ensure the stability of spindle tool change PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components LUBRICATION SYSTEM Automatic centralized lubrication device RENISHAW CUE METER Each machine passed Renishaw ballbar testing LOCKING KNIFE BLOCK Standard with lock knife block .

Dongguan Socay CNC has : More than 80,000m² of the factory with more than 200 workers.(including the cnc machining factory) Strictly QC control with more than 24 steps testing processes. 30+ years CNC machine manufacture experience factory. 24 hours online service at any time. Trade with customers in 100+ countries around the word . Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect. Support ODM OEM. Warranty time is 18 months. Adhering to the "Best Machine by Socay" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

Dongguan Shuokai Machinery Co., Ltd.. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries .

1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you.
