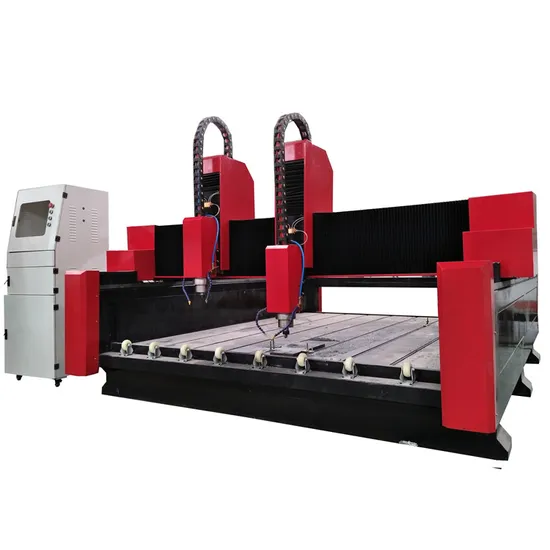

1325 1530 CNC Stone Carving Machine Two Heads 3D Marble CNC Router Machine

Product Description

1325 1530 CNC Stone Carving Machine Two Heads 3D Marble CNC Router Machine
Product Description
Standard model have FM1325 (2500*1300mm); FM1530, FM2030, FM2040 etc, support customized.
Click here to get discount price
Stone engraving machine main feature:
# With heavy welded thick bed structure, with water tank table, professional heavy structure for stone engraving
# Taiwan HIWIN square guide rails 25MM, helical rack transmission for x and y axis, ball screw for Z axis
# Stepper motor and driver,can be optional easy servo motor and driver, also pure servo motor and driver

# 5.5KW water cooling spindle, bigger power, engraving speed faster
# Aluminum T-slot table with PVC, with water tank table
# DSP control system or Ncstudio control system, can be also optional other better control system
# Auto oil lubricating system to lubricate the guide rails
# Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time, getting the more better engraving effect.
# Continuing working after the break point/power failure, lower the rejection rate.
# Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
Technical specification:

Model	FM2030
Processing size	2000*3000*400mm
Dimension of external form	3200*4300*2300mm
Processing material size	Double:950*3000mm; single:1500*3000mm
Weight	3.0T
Beam	Thickened bridge steel
Rail	Y. Z-axis 25 rail(Y-axis dual track),X-axis 30 rail
Spindle power	7.5KW*2
Spindle speed	24000rm/min
Frequency converter	7.5KW*2
Voltage	380V/50HZ
Instruct	G-code/HPGL/ENG/MMG/nc/u00
Motion positioning accuracy	0.02 mm
Repeatability	0.01 mm

Main Parts:
Thick welded steel bed structure, Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.
Big power spindle, greating cutting indensity, high efficiency, lowe noise.
Step motor and Taiwan HIWIN square guide rails 25 size and Helical rack transmission
Can choose servo motor
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
If purchase one set machine, can choose by LCL
If purchase more sets, can chosoe FCL.
Samples:

Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular
among multi industries, and clients covering almost all the Countries who doing importing and exporting business.

FAQ
Q1.Can you recommend a stone cnc machine to me ?
Yes, In order to give you a suitable fiber laser cutting machine, pls tell me your working area ? processing materials ? Then perfect suitable machine will be recommend.
Q2.Do you have operation manual and working video?
Yes,we will send it together with machine.
Q3.Does your company can processing my samples?
Yes, we can.
Q4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
Q5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts. usually for all parts can perfect working one year without any broken .
Q6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at your factory, you only need to pay the round air tickets cost and accommodation for technician.
