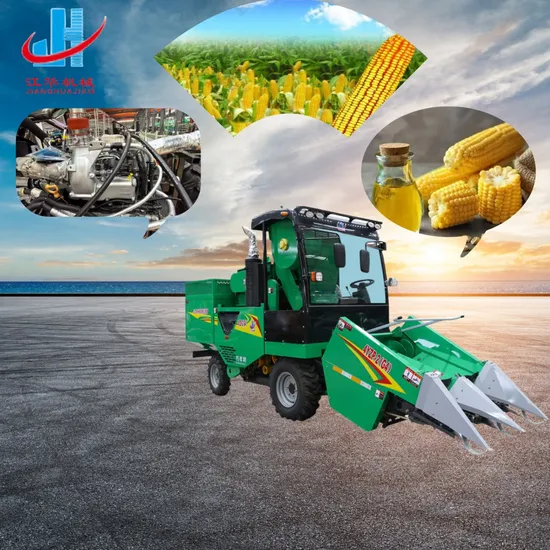

Factory Price Corn COB Harvesting Machine Farm Harvest Corn Machine 2/3/4/5/6 Rows Corn Harvester

Product Description

Product Description
1.With 75 HP engine, fuel efficient and durable, powerful.
2.Increase the granary, reduce the number and time of unloading grain.
3.Install anti-entanglement plate to prevent debris from winding bearings.
4.Equipped with plate cutting table, optional combination cutting table tip. The cutting table can be harvested close to the ground.
5.The outside Angle is adjustable.It can realize the harvest of both row and non-row and lodging corn, and has a wide range of operations
6. Equipped with 4WD type, It not only ensures the power and passability, but also takes into account the fuel economy.
7.The front axle and gearbox are made by ourselves,many companies purchased it from our factory.
Product feature
1. strong power,flexible and efficient
With 75 horsepower engine, full of power; Short wheelbase design for front and rear wheels,Small turning radius,flexible steering, high operating efficiency
2. Harvest on the slope, handle it well
Four-wheel drive, short body, low center of gravity.The slope harvest is safer and more passable.
3. Stable, reliable and durable
The chassis is made of high-strength materials, Enhanced travel gearbox for higher reliability.
4. Easy to operate and comfortable to drive
Optimized control mechanism,steering wheel Angle is adjustable,Extended seat, driving experience is more comfortable.
Product Parameter

No.	Model	unit	4 YZ- 2 (G 4 )
1	Number of rows	pcs	2
2	Power	KW/HP	55.2KW/75HP
3	Dimension	mm	5560* 1865*2650
4	Row width	mm	600
5	Driving model	/	4*4
6	Tyre size(F/R)	/	F:9.5- 16 R:6.0- 14
7	video surveillance	/	Y
8	Axle base	mm	2050
9	Wheel base(F/R)	mm	1200/1160
10	Transmission type	/	Mechnical+HST
11	Weight	kg	3400
12	Working efficiency	hm2/h	0.3~0.7
13	Grain Tank Capacity	m³	1m³
14	Qty of stripping rollers	pcs	8
15	Max. unloading height	mm	2100
16	Engine structure type	/	In-line, water-cooled, supercharged intercooled, four-stroke, high pressure common rail
