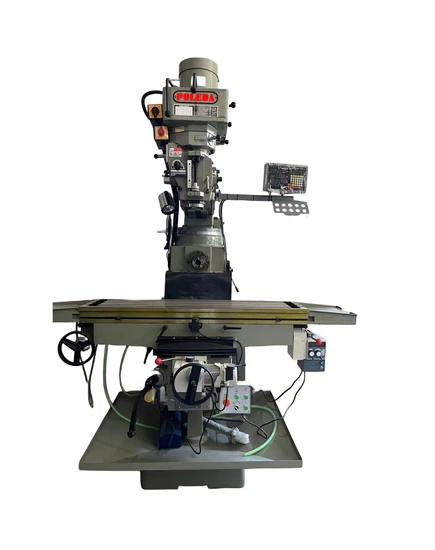

6hv Universal Vertical Horizontal Milling Machine Factory Price Direct

Product Description

Product Description
Discover the Unique Traits of Our Vertical and Horizontal Milling Machine
Experience Seamless Versatility: Our vertical and horizontal dual-purpose milling machine offers a variable spindle axis direction, meticulously designed to transform and adapt according to your processing needs. Its versatility ensures unparalleled efficiency across diverse processing scenarios.
Unleash Unmatched Power: Thanks to the innovative variability of its main shaft axis direction, this dual-purpose milling machine provides extraordinary functionality. It effortlessly processes workpiece surfaces at various angles to the horizontal plane, addressing an extensive array of processing demands.
Enhanced Adaptability: Perfectly suited for intricate processing tasks, the vertical and horizontal dual-purpose milling machine excels in plane, surface, and special angle processing. With the ability to adjust the spindle axis direction, it meets complex processing requirements with ease.
Elevate Production Efficiency: By ingeniously altering the main shaft axis direction, our milling machine can adeptly process multiple surfaces with a single installation. This innovation drastically reduces workpiece repositioning time, significantly boosting production efficiency.
Effortless Operation: Despite its robust capabilities, operating the vertical and horizontal milling machine is a breeze. Users can effortlessly switch between vertical and horizontal modes, seamlessly accommodating various processing needs with a simple operation.
Product Parameters
Structural Characteristics of the Vertical and Horizontal Milling Machine Explored
First, the Bed Structure
The bed is meticulously crafted with a double-column structure, ensuring exceptional strength and rigidity. This precision engineering guarantees high accuracy and stability, while the sliding bed accommodates the weight of the table and spindle, minimizing vibration and noise.
Second, Workbench Structure
A Crucial Component: The workbench securely holds the workpiece for precise processing. Thoughtfully designed with a T-slot for straightforward clamping, it moves seamlessly in both horizontal and vertical directions, with the added benefit of rotation for bevel machining.
Three, the Main Shaft Structure
Our spindle offers unparalleled flexibility with vertical or horizontal configurations, utilizing either a chuck or tool handle system. With high speed and torque to satisfy diverse machining needs, it's also fitted with a cooling system for optimal tool and workpiece temperature.
Four, Feed System
Essential Excellence: The feed system, comprising a feed shaft, servo motor, and guide rail, is key to precise movements in both directions. The servo motor grants meticulous control, while the guide rail maintains steadfast stability and accuracy throughout various machining operations.
Fifth, Structural Advantages
Our vertical and horizontal milling machine boasts a compact structure, powerful function, and wide applicability. With high precision and automation, it achieves efficient processing, reducing manual labor while saving both time and cost.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
