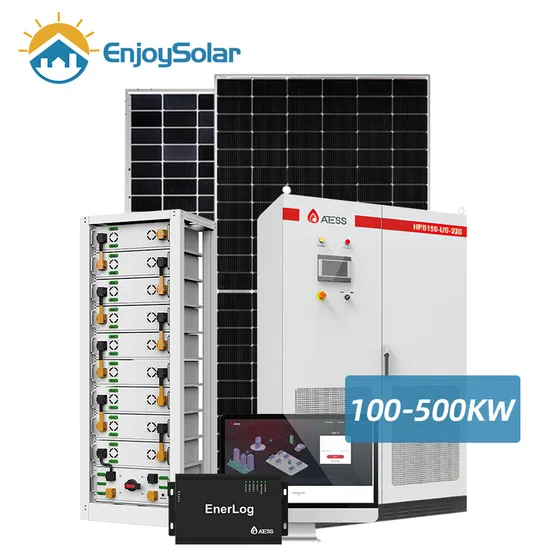

Power Conversion System 100kw to 1MW Battery Inverter Atess PCS for Industrial Solar Energy Storage System All-in-One Inverters
| US$0.25-0.40 | 1 Watt (MOQ) |
Basic Info.
Model NO.
ES-100KW
Condition
New
Certification
ISO, CE, TUV, UL,Cec, Inmetro,VDE
Application
Home, Industrial, Commercial
Specification
Normal, Customized
Product Name
100kw Solar Energy Storage System
Battery Type
Lead Acid, Lithium Ion, LiFePO4 Battery
Inverter Type
Hybrid
Solar Panel Type
Mono Perc
Technical Support
Complete Professional Technical Guidance
Output Voltage
220V Single Phase 50Hz / 400V 3phase
Online Monitoring
WiFi/LAN/GPRS
Inverter Brand
Solis, Deye, Growatt, Snre, Sofar, SMA, Hawei
Battery Voltage
High Voltage, Low Voltage
Gen Port
Yes
Mount Rack Type
Ground Mount or Rooftop Mount
Storage Capacity
Expandable
System Standards
EU/Us
Packing
Wooden Box in Pallet
Lead Time
2 Weeks
Transport Package
Carton, Pallet, Wooden Box
Trademark
Enjoy Solar
Origin
China
HS Code
8543709990
Production Capacity
2gw/Years
Packaging & Delivery
Package Size
1219.20cm * 1038.00cm * 243.80cm
Package Gross Weight
1000.000kg
Product Description
How It Works?Solutions Design
| Model | 30KW | 50KW | 100KW |
| Mono Half Cell Solar Panel 570W | 42PCS | 75PCS | 150PCS |
| Hybrid Inverter | 50KVA 1PC | 50KVA 1PC | 100KVA 1PC |
| LiFePO4 Battery | 48.8KWH (Optional) | 100.4KWH (Optional) | 200.7KWH (Optional) |
| DC Cable 1*4MM2 | 600 Meters | 800 Meters | 1000 Meters |
| MC4 Connector | 10 Pairs | 14 Pairs | 20 Pairs |
| Mounting System | Customized Designed Roof/ Ground Mounting Kits | ||
| Solar Installation Tool | 1 Set | 1 Set | 1 Set |
Mono Solar Panel
Model: ES570M-PH
Peak Power Watt: 570Wp
Open Circuit Voltage (Voc/V): 50.2V
Short Circuit Current (Isc./A): 14.34A
Voltage at Maximum Power (Vmp./V): 42.51V
Current at Maximum Power (Imp./A): 13.41A
Efficiency: 22.07%
Dimensions: 2278*1134*35mm
Weight: 28.6 kgAll-in-one hybrid solar inverter
Boosts energy independence for both homeowners and commercial users
Smart Monitoring & Remote Firmware Upgrade
Features Built-in Anti-feed-in Function
AFCI (Optional) & Ready for Rapid Shutdown
Supports Time-of-use Optimization Battery Storage Bank
Deep Cycle design with an extended lifespanDelivers outstanding high discharge performanceOffers easy installation and is maintenance-freeCompatible with AGM/GEL/Lithium Ion Battery TypesHigh Voltage Battery
Exceeds 6000 cycles, up to 90% DODDesigned for a wide range of ambient temperaturesDC Cable & Accessories
Cross Section: 4mm2, 6mm2 OptionalRated Voltage: 600VDC /1000VDC (TUV)Rated Current: 55A, 70AAvailable Colors: Black as Standard, Red OptionalLifetime: ≤25 YearsOnline Monitoring System
Open Station supports seamless one-click
Installation and solves registration problems efficiently
Facilitates one-click dispatch and navigation
Ensures safe operation with traceable logs and more
Supports full life-cycle data storage to guarantee
data security and reliabilityPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI6005 & SUS304 BOLT
MID&END CLAMPS: 30,35,40MM
Optional: Roof Mounting/Ground Mounting/Carport etc. Customized design based on customer's installation area. Packaging & Shipping
