Universal Heavy Duty Torno Dle 620 Horizontal Turning 22kw Metal Engine Lathe

Product Description

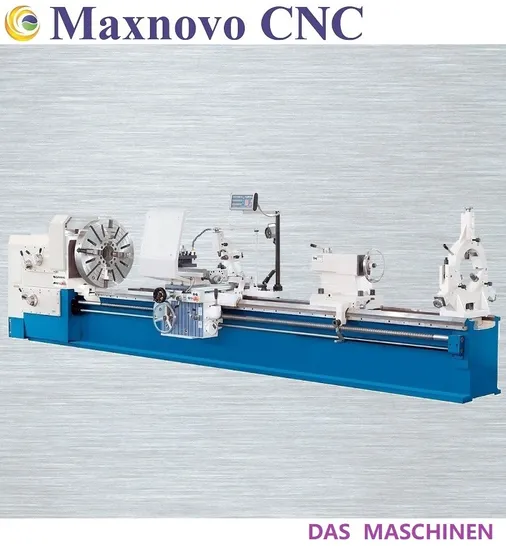

MM-DLE 620 Torno - Universal Heavy Duty Horizontal Metal Turning Conventional Engine Lathe - MAXNOVO MACHINE
This kind of MM-DLE620 series is high precision Universal Heavy-duty Metal Engine Lathe which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe has Larger Machine Bed Width 780 mm, Big Spindle Bore 130 mm diameter, Maximum Loading Weight of Work-pieces up 8000 KGS, and Center Widths up to 18000 mm.
Product Description
Universal Heavy-duty Engine Lathe which has Larger Machine Bed, Big spindle bore, large turning diameter and maximum stability and high accuracy for roughing and finishing operations.

Main Feature :
Convincing Arguments: Quality, Efficiency and Price -Larger Rigid Machine Bed Width 780 mm
-Max. Weight of work-piece 8000 KGS
-Max. Swing over bed Ø 1250 mm
-Extra heavy, wide machine bed with heavy ribbing construction
-22KW Powerful motor ensures high cutting power
-Induction hardened and ground guide-ways
-Large spindle bore (Ø 130 mm diameter)
-Very quiet operating at maximum spindle speed
-Large spindle bearings
-Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
-The auxiliary gearbox features a wide spectrum of diametric, inch, module threads
-Rapid feed for X and Z axis allow quick support positioning and less down-time
-Sturdy multi-disk clutch for headstock drive
-More accuracy and Lower error rate
-Nr 12 standard for Brazil is optional
-Overload clutch enclosed in apron
-3-axis digital position indicator is optional
-Certificate of Original (CO, FORM A, FORM E, FORM F )
Product Parameters
Technical Data :

Product Name :	Universal Heavy Duty Engine Lathe Machine
Product Item :	MM-DLE 620
Max. Weight of Work-piece :	8000 KGS
Max Swing over Bed :	Ø 1250 mm
Max. Swing over Gap Bridge :	Ø 1650 mm
Max. Swing over Cross Slide :	Ø 880 mm
Distance Between Centers :	1500 / 2000 / 3000 /4000 /5000 /6000 / 8000 /10000 /12000 /14000 /16000 /18000 mm
Bed Width :	780 mm
Swing range of Top Slide :	90 degree
Headstock
Spindle Bore :	Ø 130 mm
Spindle Taper :	Ø 140 mm
Spindle Speed Range :	3.15-315 RPM (21 kinds)
Tapping Capacity
Pitch-Metric in range of :	1-120 mm (44 kinds)
P itch-Inch in range of :	1/4-24 (31 kinds)
Module Threads in range of :	0.5-60 mm (45 kinds)
Diameter Threads in range of :	1/2-56 DP (38 kinds)
Longitudinal feed in range of :	0.1-12 mm/rev (56 kinds)
Transverse feed in range of :	0.05-6 mm/rev (56 kinds)
Rapid Feed X-axis :	1700 mm / min
Rapid Feed Z-axis :	3400 mm / min
Tailstock
Tailstock Taper :	Metric 80
Tailstock Quill Diameter :	Ø 160 mm
Tailstock Sleeve Travel :	300 mm
Travel of Top slide :	280 mm
Travel of Cross slide :	650 mm
Drive Capacity
Main Motor :	22 KW
Rapid Feed Motor :	1.5 KW
Coolant Motor :	150 W
Tool Shank Dimensions :	45 X 45 mm
Packing Type :	Export Type Pallet Packing
Gross Weight :	16000 KGS (for MM-DLE 620 X 3000)
Packing Size :	6200 X 1900 X 2450 mm (for MM-DLE 620 X 3000)
Standard Accessory :	4-Jaw Chuck, Oil Gun, Center, Main Spindle Center, Spindle Center Sleeve, Tailstock Centre, Tools and Tool box

High Precision Lathe Machine for Demanding Users !
Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment
Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE.
The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines .
Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts.
The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards.
In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy.
Intensively Production The MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
FAQ :
1.Question:Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
2.Question:How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control, Environment Control, Product Traceability System, Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc .
