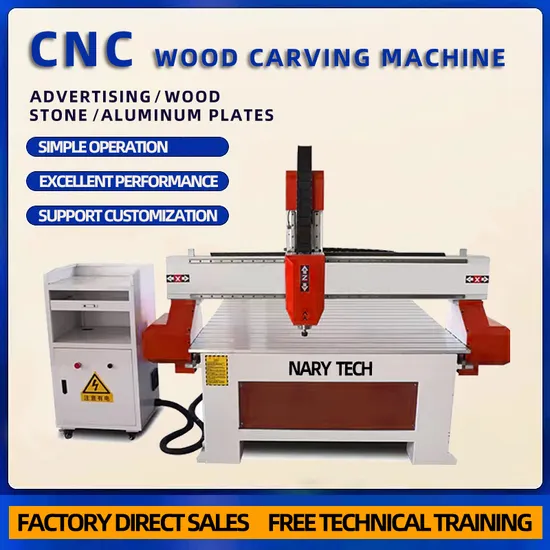

Nr-1325 Furniture Manufacturing Equipment 3D CNC Router Wood CNC Router Machine

Product Description

Application fields CNC Wood Routers are used for woodworking such as hollow wood caving, relief wood carving, plane wood carving, 3D wood carving, Furniture production, etc.1. engaged in arts, gifts, crafts, signs, marks, logos, moulds, models, boxes, etc. for advertising, home using or school teaching, .2. wood production, such as solid wood door, Craft wood door, MDF door, screens, windows, table and chairs, Cabinet, Room decoration, etc.3.some woodworking works like customized panel furniture production, we also have Intelligent CNC Routers with auto nesting software, it has full functions of automatically uploading and downloading, automatically nesting, labeling, optimizing, vertical drilling, slotting, grooving, cutting, carving and engraving, etc.4. This machine is perfect for 3d engraving and flat objects at the same time. it is widely used in 3D carved plates with wave patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and the panel furniture auxiliary processing etc.5. Suitable for woodworking, stone, soft metal, plastic, PPE, PPR, advertising and other industries
Product Parameters

Machine Model	NR-1325
Working Area(X, Y, Z)	1300mm*2500mm*200mm
Table Size(X,Y)	1450mm*3050mm
Machine Dimension	3000mm*2200mm*2200mm
Machine Structure	Welded steel
Table Structure	Aluminum T-slot+vacuum table with 5.5KW vacuum pump
X, Y ,Z Guide	square rail
X ,Y Transmission	High precision helical gear rack
Z Transmission	Ball screw
Spindle Power	4.5KW, water cooling
Collet	ER20(diameter 3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm)
Spindle Speed	24000r/min
Max. Travelling Speed	32000mm/min
Max.Working Speed	20000mm/min
Control System	NC-STUDIO
Positioning Accuracy	≤0.01mm
Processing Accuracy	±0.01mm
Motor	Powerful 86 SERIES 450B Stepper Motor
Driver	Powerful LEADSHINE DMA860H Step Driver
Auto Lubrication System	With
Zero Sensor X, Y, Z axis	With
Cutter height sensor	With
Wave Filter	With
Working Voltage	AC380V, 50HZ
Net Weight/Gross Weight	1180KGS /1310KGS
Package Size	3100mm*2300mm*2300mm
Warranty	12 months
Optional	-5.5KW, 6.0KW, 7.5KW water cooling spindle -4.5KW, 6.0KW, 7.5KW air cooling spindle; -The rotating device (fourth axis) with diameter: 100mm, 160mm, 200mm, 250mm, 320mm -Servo motor and servo driver -Can be customized according to customers' special requirements

Product Pictures
Product Usage
Company Profile
Packaging & Shipping
Packaging and delivery of small wooden CNC routers:
Packaging details:
1. Outer packaging: Standard plywood packaging.
2. Inner packaging: elastic film and moisture resistant plastic film.
We can pack according to your requirements.
Delivery details: For atandard machines, 7-15 working days after payment; For non-standard machines and customization
According to the specific requirements of the customer, the machine will take 15 to 30 working days after payment.
After Sales Service
Engineers who can repair machinery overseas.
2. The entire machine comes with a one-year warranty.
3. We provide technical support through phone, email, WhatsApp, and Skype. If you have any questions, we will resolve them within 12 hours.
4. You will receive free training advice on our machines at our factory.
If you need any components of the machine, we will provide you with the most favorable price.
6. Friendly English manual and operation video CD
FAQ
Q1
What should I do to provide the most suitable machine?
1) . The exact material you want to carve/cut? (For example, wood, acrylic, cloth, fabric, leather, metal...?)
2) . May I know the cutting or carving depth you want for the spindle power?
3) . What work area do you need? (such as the maximum size of the material, width * length, 1200 * 1200 millimeters, 1300 * 2500 millimeters, 2000 * 3000 millimeters, etc.)
4) . Do you want to carve on flat surfaces or circular surfaces?
If so, optional items should be added to the machine, such as rotating attachments. If you could provide some of your photos
Product, that would be great! After you tell us these, we will send you more information about the machine and price.
Q2
If we don't know how to use this machine, can you teach us? Yes, we will. If you come to China, we will provide you with free training
Until you are free to use the machine. If you are busy, we will have special engineers coming to your country, but you will need to take on some responsibilities
Costs, such as tickets, hotels, and meals.
Q3
How is your after-sales service?
We provide you with 24-hour service hotline, Skype or MSN.
Q4
What is your warranty period?
Within one year, if you have any questions, we will solve them for free
