New Design Class B Woson/Runyes/Lafomed/Icanclave Dental Autoclave

Product Description

Product Description
High Quality Class B table top autoclave sterilize dental Autoclave, 18 & 23L, LCD display
FEATURES

Sterilization Class	CLASS B
Sterilization Temperature	121ºC &134ºC
Special Program	HIV, HBV long-sterilization program
Dry System	Vacuum drying system
Display	LCD display
Languages	English, Spanish, Italian, French, Portuguese, Ruassian
Testing System	Bowie&Dick Test Vacuum Test Helix Test
Control Precision	Temperature: 0.1ºC Pressure: 0.1Kpa
Sterilization Data	USB & Built in printer
Safety System	Relief valve Hand lock door Pressure or temperature over load protection Alarm system
Water Supply System	Build-in water tank easy to clean Cubage: 3.5 or 4L
Tray Holder	5 layers tray holder with 3 trays
Chamber	Medical stainless steel 304 Max working pressure:2.3bar Min working pressure: -0.9bar Max temperature: 145ºC
Operation Temperature	5~40ºC
Noise	<50db
Water consumption in one cycle	0.16L~0.18L

PROGRAMS

Program	Temp.	Pres.	Vacuum Times	Sterilization Time	Drying Time
EMERGENCY	134ºC	210kPa	1	4 min	8 min
SOLID	134ºC	210kPa	1	4 min	8 min
HOLLOW	134ºC	210kPa	3	4 min	10 min
SANGUINARY	134ºC	210kPa	3	18 min	10 min
SOLID	121ºC	110Kpa	1	20 min	8 min
HOLLOW	121ºC	1100Kpa	3	20 min	10 min
GLASS	121ºC	110Kpa	1	20 min	8 min
TAMPON	121ºC	110Kpa	3	30 min	18 min
TEST B&D	134ºC	210Kpa	3	3.5 min	3 min
TEST HELIX	134ºC	210Kpa	3	3.5 min	3 min
TEST VACUUM
USER- DEFINED

MODEL LIST

Model	Voltage/Power	Chamber Size	Outside Size	Packing Size	Net Weight
ARIES-18	220V/1500W	Φ245×360	560×450×400	660×525×495	47
ARIES-23	220V/1700W	Φ245×470	670×450×400	770×530×495	53

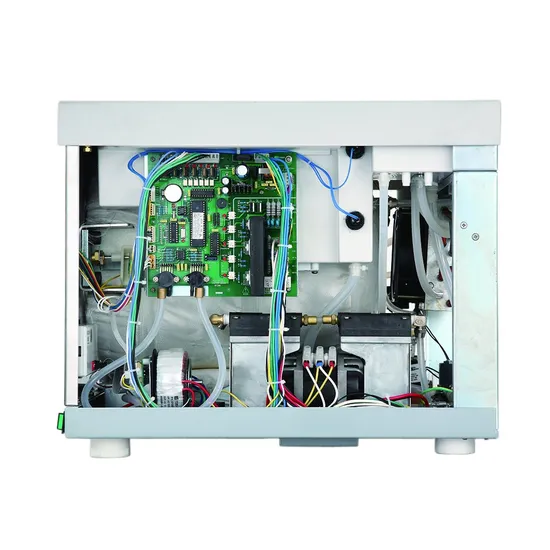

PARTS
Application Field
Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Salon, Tattoo House,
Application Directive and Standard

Directive or Standard No.	Directive or Standard Name
MDD 93/42/EEC	Medical Device Directive
PED 97/23/EC	Pressure Equipment Directive
EN 61010-1	Safety regulations for electrical measuring, controlling and laboratory Devices- Part 1: General requirements
EN 61010-2-040:	Safety requirements for electrical equipment for measurement, control and laboratory use -Part 2-040: Particular requirements for sterilizers and washer-disinfectors used to treat medical materials
EN 13060	Small steam sterilizers
EN 61326-1	Electrical equipment for measurement, control and laboratory use - EMC requirements

Quality System

Quality System No.	Quality System Name
ISO 9001	Quality management systems-Requirements
ISO 13485	Medical device-Quality management systems-Requirement for regulatory purposes

WORKSHOP
Packaging & Shipping
FAQ
1. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15-30days. Our production capacity is 1500pcs per month.

2.What about quality assurance?
We offer 2 years warranty period beginning from the time of shipment. During this period, if the machine get problems, we would provide free spare parts for replacements. We will provide free spare parts for service back up if order quantity more then 5pcs

3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Europe, Africa, Middle East, Asia and South American through year after year efforts.

4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .

5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.

6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
