500 Ton Plastic Injection Molding Machine

500 Ton Plastic Injection Molding Machine

US$66,000.00
1-2 Sets
US$65,500.00
3-4 Sets
US$65,000.00
5+ Sets

Basic Info.

Model NO.
NT-1050
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Product Name
Plastic Injection Molding Machine
Machine Type
Horizontal/Hydraulic/Electric
Application
Plastic Industry
Operating Langauge
English/ Customization
Auxiliary Equipment
Robot Arm/Chiller/Crusher/Auto Loader.etc
Delivery Time
45-60 Days
Shipping Method
Full 20gp/40gp/40hq Container
Transport Package
at Seller′s Option
Specification
5000KN
Trademark
LEANTALL
Origin
China
Production Capacity
20sets/Month

Packaging & Delivery

Package Size
800.00cm * 200.00cm * 300.00cm
Package Gross Weight
18000.000kg

Product Description

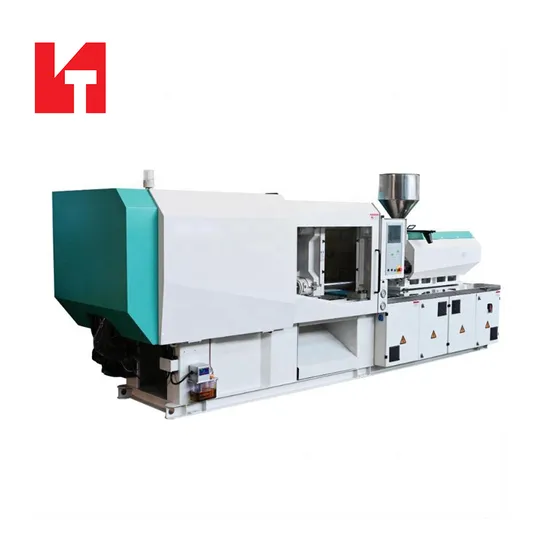

500 Ton Plastic Injection Molding Machine
Plastic injection molding machine consists of a plasticizing system, injection system, clamping system, and transmission system.
We have been applying die-casting technologies to injection molding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, the perfect combination of dynamic pressure casting and speed.
To improve the production stability and save energy for medical products such as syringes, We specially add an infrared heating coil and servo motor system to the standard injection molding machine.
Item Unit NT230 NT260 NT280 NT330 NT400 NT500
SCREW DIAMETER mm 45 50 55 55 60 65 55 60 65 65 70 75 70 75 80 70 75 80
SCREW L/D RATIO L/D 22.2 20 18.2 23 21 19 23 21 19 22 20 19 221.4 20 19 21.4 20 19
INJECTION STROKE mm 250 250 250 285 285 285 285 285 285 350 350 350 390 390 390 390 390 390
INJECTION SPEED Mm/sec 103 103 103 94 94 94 94 94 94 97 97 97 97 97 97 97 97 97
SHOT VOLUME(THEORETICAL) CM3 397 490 594 677 805 945 677 805 945 1161 1347 1546 1501 1723 1960 1501 1723 1960
INJECTION WEIGHT(PS) g 361 445 540 616 732 860 616 732 860 1056 1225 1406 1366 1568 1784 1366 1568 1784
INJECTION PRESSURE Mpa 221 179 148 202 170 145 202 170 145 202 174 152 194 169 148 194 169 148
INJECTION RATE cm3/sec 163 202 242 223 265 312 223 265 312 321 373 428 373 428 487 373 428 487
SCREW SPEED rpm 225 210 210 189 170 170
CLAMP FORCE Kn 2300 2600 2800 3300 4000 500
OPEN STROKE mm 475 560 590 669 725 810
SPACE BETWEEN TIE BARS mm×mm 520*520 580*580 615*615 730*670 730*730 830*780
MAX.MOULD HEIGHT mm 550 580 630 680 780 820
MIN.MOULD HEIGHT mm 200 200 200 250 250 250
EJECTOR STROKE mm 140 135 135 160 150 200
EJECTOR FORCE Kn 62 62 70 70 79 110
EJECTOR NUMBER N 5 9 9 9 13 13
MAX.PUMP PRESSURE Mpa 16 16 16 16 16 16
SEVRO DRIVE POWER Kw 30 37 37 55 55 55
HEATING POWER Kw 12.5 18.5 18.5 22.5 29.5 29.5
MACHINE DIMENSION(L*W*H) m×m×m 5.8*1.45*2.1 6.2*1.55*2.1 6.35*1.7*2.35 7.2*1.85*2.35 7.6*1.85*2.35 7.9*1.95*2.4
MACHINE WEIGHT(ESTIMATE) T 6.5 8.6 9.3 12 16 18

Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
