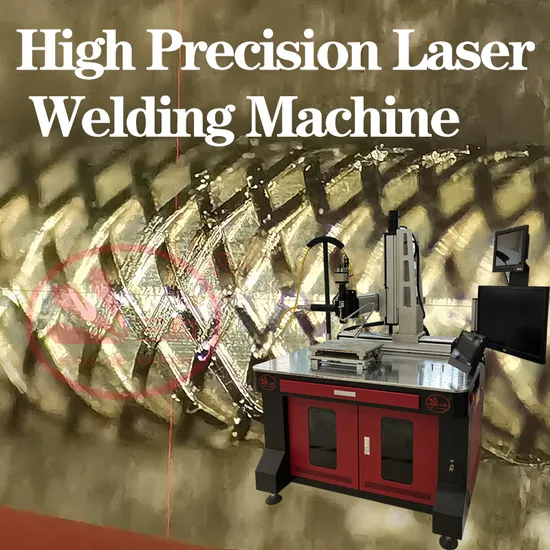

Wholesale Supply Medical Precision Products Laser Welding Machine Endoscope Woven Mesh Guide Wire Catheter Laser Welding
| US$16,660.00-28,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3HE-QCW60W
Application
Biomedicine, Electronic Industry, Manufacturing Industry, 3c Electronics Industry
Technical Class
Qcw
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Qcw Laser
Type
Automatic Laser Welding Machine
Power
60W/100W/150W
Spot Diameter
0.05-1.0mm
Fiber Core
20um
Power Consumption
2kw
AC
220V
Xyz
400*300*300
Rotation
Optional
Cooling
Air Cooling
Transport Package
Plywood
Specification
1100*1000*1500
Trademark
SANHE
Origin
China
HS Code
851580909
Production Capacity
200set/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 190.00cm
Package Gross Weight
800.000kg
Product Description
Product DescriptionDetailed Photos
Our Advantages
Main Features
1.High beam quality quasi-continuous fiber laser, maintenance-free, 90% power saving compared to YAG laser.
2.Fast switching between multi beam paths with high-efficiency beam splitting module.
3.Very cost-effective, simultaneous welding on multiple products.
4.Very flexible, it can be used with a manual working table or automation line.
5.The visual calibration system can quickly calibrate the welding trajectory. The energy monitoring system can quickly provide feedback on the fluctuation of welding energy, and the temperature detection system can check the stability of the optical path in real-time to achieve good welding consistency.
6.The equipment is air-cooled and maintenance-free.
Product Parameters
| Model | 3HE-QCW60W/100W/150W |
| Laser wavelength | 1070nm |
| Output optical power | 60W/100W/150W |
| Maximum pulse energy | 10 J |
| Maximum peak power | 1000W |
| Pulse width | 0.05-50ms |
| Operating mode | pulse |
| Energy volatility | <1.5% |
| Fiber core | 15-25um (optional) |
| Fiber output number | 1 way |
| Aiming and positioning method cooling method | Laser diode red light indication Air-cooling |
| Device power | 100W |
| Electricity requirements | AC220V,50/60Hz |
| Spot size | Minimum 0.05mm |
Sample display
Packaging & Shipping
Company Profile
Dongguan Sanhe Laser Technology Co.,Ltd
