1lyq-522 25-30HP Tractor Mounted Rotary Driven Disc Plough Disc Plow Cultivator
Basic Info.
Model NO.
1LYQ-522
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE, ISO
Color
Red, Blue,Green, Other Colors
Warranty
1 Year
Transport Package
Iron Shellframe Box
Specification
See Specification list
Trademark
CYC
Origin
China
HS Code
8432100000
Production Capacity
5000 Sets / Month
Product Description
1LYQ-522 25-30HP tractor mounted Rotary driven Disc plough disc plow cultivator1LYQ series Disc Plough, also named Rotary-driven Disc plough, Drive plough,One-way Disc plough, Heavy duty plough, Plow,
Farm plough, Agriculture Plough, Tractor Plough
Main Features:

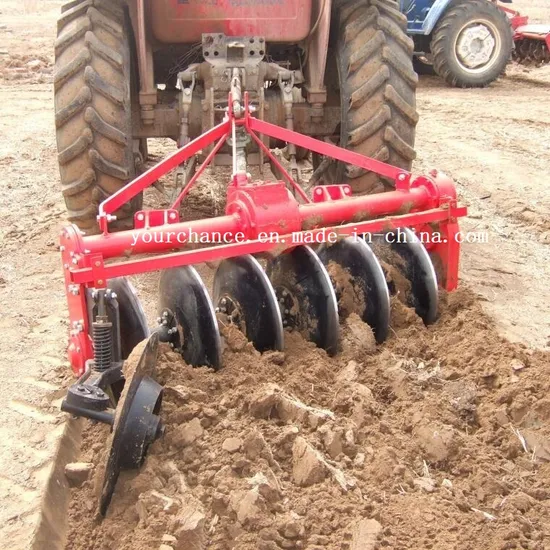

1LYQ driven disc plow is mounted on a tractor through a rear mounted three-point linkage. During the working process of the implement,
the motive power is transferred to the gear case of the disc plow through a back power takeoff shaft (PTO) of the tractor to drive the discs
of the disc plow to rotate. The driven disc plow, which is mainly suitable for paddy field plowing, has the advantages of no weed winding,
high operational quality and high working efficiency.
Main Specification and Technical parameters :
| Model | 1LYQ-322 | 1LYQ-422 | 1LYQ -522 | 1LYQ-622 | 1LYQ -722 | 1LYQ-822 | 1LYQ-922 | |
| Overall dimension (mm) | L | 855 | 965 | 1075 | 1210 | 1325 | 1440 | 1555 |
| W | 1145 | 1365 | 1585 | 1805 | 2025 | 2245 | 2465 | |
| H | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | |
| Working width (mm) | 660 | 880 | 1100 | 1320 | 1540 | 1760 | 1980 | |
| Disc diameter (mm) | 500 | 500 | 500 | 560 | 560 | 560 | 560 | |
| Disc thickness (mm) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Disc no. | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |
| Working depth (mm) | 120~240 | |||||||
| Input shaft rotating speed (rpm) | 540~720 | |||||||
| Cutter shaft rotating speed (rpm) | 90~120 | |||||||
| Matched power (hp) | 12-20 | 18~28 | 25~30 | 30~50 | 50~60 | 60~70 | 70-90 | |
| Weight (kg) | 216 | 240 | 276 | 321 | 357 | 400 | 430 | |
| Linkage | Standard Three-point Suspension | |||||||
1LYQ series Disc Plough main Features and Specification :
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
Disc Plough by Iron crate box Packing :
Best price will be quoted for you as soon as receive your Requirement !
