High Precision Labcenter 260 Vertical CNC Milling Machine

Product Description

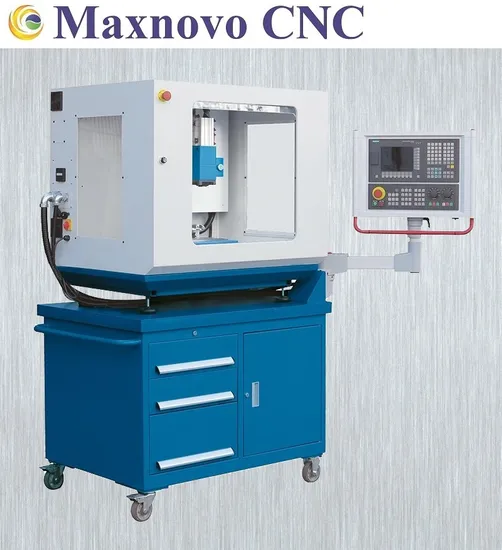

MM-LabCenter 260 - High Precision Vertical CNC Milling Machine - MAXNOVO MACHINE
This kind of MM-LabCenter260 is the high precision of compact CNC Milling Machine with SIEMENS CNC Control System which is been made in ISO9001 factory with CE Safety Certification. It is the compact and user-friendly solution for milling applications, ideal for mobile and professional education training use, prototype engineering or small batch productions.
Product Description

High precision Compact CNC Vertical Milling Machining Center, Mobile and Professional for Laboratories and Training
Main Feature :
Convincing Arguments: Quality, Efficiency and Price -High Performance and High Precision CNC Milling Machine
-Max. Spindle Speeds up to 5000 RPM
-SIEMENS 808D Advanced CNC Control System (new version)
-Dovetail guides and Pre-loaded Ball Screws on all three axes (X/Y/Z-axis)
-Servo Motor for on all three axes (X/Y/Z-axis)
-Precisely machined frame made of high-quality cast iron
-Modern safety concept provides easily accessible enclosure and install
pneumatically opened door -Electronic hand-wheel (optional) for efficient and professional set-up
-4-station tool changer ensures flexibility and better productivity
-Mobile Machine Base with storage room is standard included
-Powerful 1000W brushless driving motor for high torque
-Connecting voltage is Three Phase 400V
-Portable Electronic Hand-wheel is optional
-Coolant system is optional
-Certificate of Original (CO, FORM A, FORM E, FORM F)
Product Parameters

Technical Data :

Product Name :	High Precision CNC Milling Machine
Product Item :	MM-LabCenter 260
Control System :	SIEMENS 808D Advanced (new version)
Machine Data
Table Dimensions :	400 X 145 mm
Table Load Capacity :	20 KGS
Spindle Taper :	ISO 20
Spindle Speed :	100 - 5000 RPM
T-slots (number / width / distance) :	3 piece X 12 mm X 40 mm
Spindle nose-to-table surface distance :	60 - 240 mm
Spindle axis to column surface distance :	200 mm
Travels
Travel X-axis :	260 mm
Travel Y-axis :	152 mm
Travel Z-axis :	180 mm
Feed
Rapid Feed X / Y / Z-axis :	2000 / 2000 / 2000 mm /min
Cutting Feed X / Y / Z-axis :	500 mm / min
Feed Motor X / Y / Z-axis :	2.2 Nm / 2.2 Nm / 2.2 Nm (Servo Motor)
Accuracy
Positioning Accuracies :	± 0.015 mm
Repeat Positioning Accuracies :	± 0.010 mm
Tooling
Number of tool stations :	4 pieces
Max. Tool Size X Max. tool length :	10 mm (diameter) X 110 mm (length)
Max. tool weight :	0.5 KGS
Tool of tool changing :	10 sec
Drive Capacity
Main Motor :	1000W
Connecting Voltage :	Three Phase 400V
Pneumatic Supply :	0.6 MPA
Gross Weight :	480 KGS
Packing Size :	1480 X 980 X 1880 mm
Standard Accessory :	SIEMENS 808D Advanced Control System, Machine Base, 4-station Automatic Tool Changer, Pneumatic Door, Ball Screws for all Axis, Central lubrication, Machine Lamp, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.

High Precision CNC Machining Center for Demanding Users !
FAQ :
1. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


2. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 -- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
