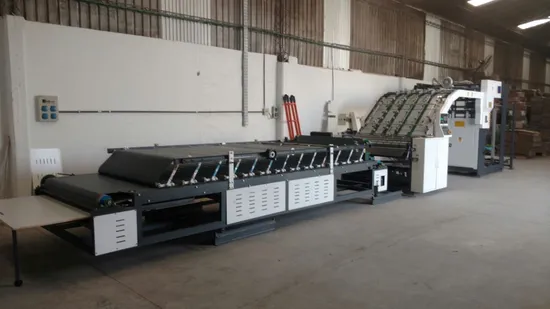

Fully Automatic Flute Laminator Machine for Paper Sheet 1450*1450mm

Product Description

Grassi style Auto Flute Laminating Machine
Features of the machine
1.The feeding unit is equipped with a pre-piling device to increase the production efficiency.
2.High strength feeder uses 4 lifting suckers and 4 forwarding suckers to ensure smooth running with no missing of sheet even at high speed.
3.The electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.
4.Gluing unit uses high precise coating roller, together with specially designed metering roller enhances the evenness of gluing.The unique gluing roller with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.
5.Machine body are processed by CNC lathe in one process, which ensures the precise of every positions. Toothed belts for transferring guarantees smooth running with low noise. Motors and the spares uses Chinese famous brand with high efficiency, less trouble and long service life.
6.Corrugated board feeding unit adopts powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses unique dust collection filter box,which enhances suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing of sheets.
7.The pressure of the rollers are adjusted synchronously by one hand wheel, easy to operate with even pressure, which ensures the flute not to be damaged.
8.All material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported ones.
9. The bottom sheet for this machine can be A, B, C, E, F flute corrugated sheet. The top sheet can be 150-450 GSM. It can do 3 or 5 ply corrugated board to sheet lamination with the thickness not more than 8mm. It has top paper advance or alignment function.
Technical Parameters:

Model	GSL-1450
Max feeding size(mm)	1450*1450
Mini feeding size(mm)	350*350
Top sheet weight(mm)	150-450gsm
Bottom sheet thickness	<=8mm
Maxi working speed	153m/min
Laminating precision	±2mm
Total power	16.25kw
Outer dimension	14.3*2.68*2.8m
Machine weight	7200kg
