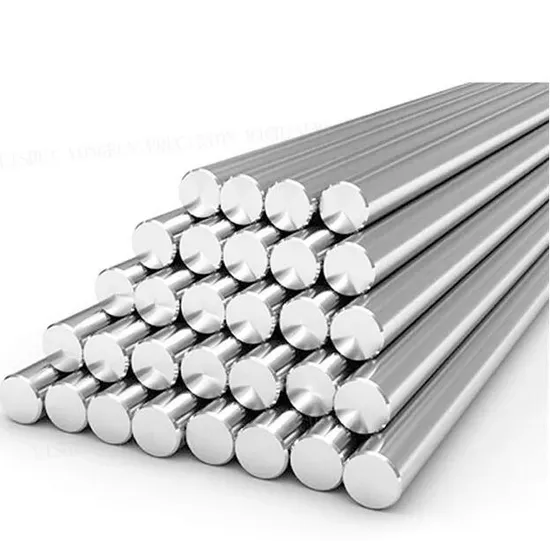

Fabricado En China Factory Hard Chrome Plated Ck45 Material Induction Linear Motion Shaft

Product Description

fabricado en china Factory Hard Chrome Plated CK45 Material Induction Linear Motion Shaft Product Description Linear Shaft is the guiding effect of sliding bearing, which can make the products of linear motion.
The necessary conditions required by the linear motion system is: Simple design, the best performance, low maintenance cost, using the selected durable material, high-frequency heat treatment, the accurate outside
Diameter size, roundness, really straight and surface treatment, etc.
Linear Shaft (Linear rod; Steel bar; Optical axis)

Model No.	WCS SFC WC SF series 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm
Material	45# steel,GCR15,SUS440C
OEM & ODM	Yes
Hardened layer thickness	0.8mm-3mm
Length	0-6000mm (If you need above 6000mm, we can anti-connect for you)
Precision	G6 H6 G7 H7 customized
Roughness	Within 1.5μm
Straightness	Not excess 1.5μm of 100mm (Rmax)
OEM & ODM	We are Professional bearing manufactory in China, the bearing of High Quality can be OEM & Customized according to your requirement, such as for thread shaft or not, Reduced shaft diameter, Coaxial Holes Drilled and Tapped, FlatsSingle or Multiple, Key Way, Snap ring Grooves, Radial Holes Drilled and Tapped, Chamfering, etc.

Detailed Photos
Linear Shaft Application: 1. Solid shaft
Generally applicable to industrial robots, as a professional measuring instruments, medical equipment, precision machine tools, aircraft shaft, pneumatic mandrel movement part.
2. Hollow shaft
With its weight to reduce equipment, simplify the structure of the advantages, you can then wear the internal measurement of wire, compressed air, can also add lubricants and hydraulic oil.
3. Stainless steel shaft
It's generally suitable for use as a part of the measurement in the presence of chemicals such as chemicals, seawater and other
Substances.
Special machining shafts are finely finished after heat treatment with hard chrome plating for all types of automation equipment.
Special Machining for Linear Shaft:
1. For the Length We can offer linear shaft with diameterφ5mm-φ150mm. Maxium length up to 6000mm. When you are special requirements on length, we can meet your machining requirements with different length. When you request above 6000mm, we can anti-connect for you.
2. For Special Processing When you have special requirements on machining. Such as threading, coaxial holes drilled and tapped, radial holes drilled and tapped, reduced shaft diameter etc, we can machine for you, and these special machines are finished after heat treatment and hard chromic so that ensure the precision of product. Send us your detailed sketch or blue print for propmt quotation and action, you should be satisfied with our service.
Packaging & Shipping
Packing
1.Pipe +Wooden box packing
2.Plastic bag+Wooden box packing
3.Industrial packing
4.According customers requirements to do
Company Profile
BXY BRAND is a professional Bearing and Grease Manufacturer & Trader that focus on Research & Development, Design, Production and Sales of Bearing and Grease.There has been over 20years of experience in Bearing and Grease domestic & overseas market since we established. In addition to excellent OEM services, we also registered our own brand: BXY,QHW,SKYN,etc.
In order to supply better service and products for valued customers from all over the world, BXY BRAND follows the development policy of "quality-oriented, customer first" with the goal of "Zero Defect" and the core value of "Integrity of the root" to build Shining Industry into a modern enterprise company with advanced system, technology, management and beautiful environment.
We use a fully automatic production line and advanced testing equipment to track and control the whole production process to ensure the stability and consistency of our quality.Meanwhile, the complete strict quality control process can ensure high quality from raw material purchasing to finished product.
Develop up to today, Bearings and Grease from factory are very popular all over the world, such as Russia, Spain, Brazil, America, South Africa, Southeast Asia and other countries.
Major Competitive Advantages
More than 20years of professional experience as a manufacturer of bearing and lubricating grease
·Diversification of packaging, standard industrial package or unique package on your request
·Strong researching and developing team to solve grease problems.
·Professional Technical Support
·Just-in-time delivery
·Small trial orders can be accepted
·Free sample is available
·High quality bearings with international standard
Why Choose Us
We take "Zero Defect" and " Integrity-Oriented" as our work goal and core value with Quality of the root and customer first.
Establish long-term business relationship with us, you will get:
·Quick response within 24/7
·Professional technical support
·Reasonable price with right quality
·Prompt lead time
·Excellent after-service
And more extra values when you need.
