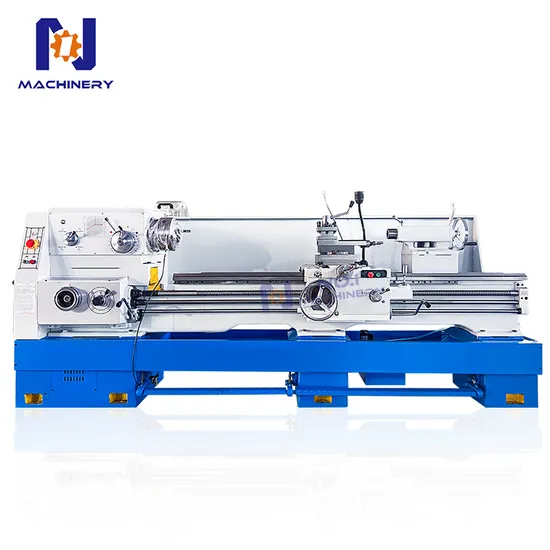

Ca6166 Horizontal Metal Lathe 82mm Spindle Universal Lathe Machine for Precision Metal Turning

Product Description

Product Description
Main features:
Spindle: the end conforms to lSO-C6 international standard.
Tool holder: using end-face tooth disc positioning, repeat positioning accuracy.
Tail frame: with fast cam clamping device, high efficiency. Guide rail: Ultrasonic frequency quenching, hardness reached HB400,CNCperipheral grinding, with high precision, good wear resistance and so on.
Spindle Box: it adopts Harbin BEARING high precision double bal BEARINGto support the spindle to ensure the precision ofthe spindle when it rotatesat high speed. many kinds of thread, metric inch thread conversion is simple. Product Parameters

Specifications		CA6166 CA6166B CA6166C
Max. Swing over bed		660mm
Max. Swing over carriage		400mm
Max. swing in gap		--
Effective gap length		--
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm. (B:80mm). [C:105mm]
	Spindle taper	NO.6(MT6)(B:Φ90 1:20)[C:Φ113 1:20]
Feed	Number of feeds	64(kinds)(for each)
	Range of metric threads(kinds)	(1-192mm)44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	0.25-48(Moduie39kinds)
	Range of pitch threads(kinds)	1-96DP(37kinds)
Tailstock	Max. tail stock spindle travel	150mm
	Tail stock spindle diameter	75mm
	Taper of tail stock spindle center hole	NO.5(MT5)
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
	Weight for 750mm	2380 2260
	Weight for 1000mm	2570 2450
	Weight for 1500mm	2810 2640
	Weight for 2000mm	3050 2880
	Weight for 2200mm	3390 3180
	Weight for 3000mm	3930 3687
	Weight for 4000mm	4580 4200

Details Display
HT300 grey iron casting, one-piece casting, more stable.

Classic gear shifting device, gear engagement is more accurate/fast

Quick feed button, convenient/precise

High-strength manual three-jaw chuck, four-station tool holder (optional German-style quick-change tool holder)

Integrated manual tailstock, higher strength and stronger clamping.

2-axis DRO, more suitable for beginners and precision parts processing
Product packaging
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
