100 200 300 305 Meters RG5 RG6/U 5C2V Coaxial Cable

Product Description

Product Description
100 200 300 Meters RG5 RG6/U 5C2V Coaxial CableProduct Description

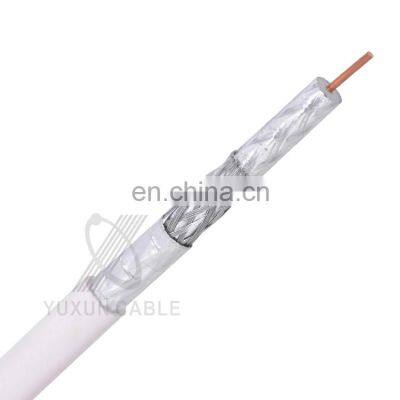

RG6 Tri-shield coaxial Cable
Physical Dimensions
CONDUCTOR	MATERIAL	CCS
	CONSTRUCTION	1.02±0.03mm
INSULATION	MATERIAL	FPE
	DIAMETER	4.57±0.2mm
SHIELD	MATERIAL	Double AL Foil
WEAVE	MATERIAL	AM
	CONSTRUCTION	0.16*64
SHIELD	MATERIAL	Double AL Foil
JACKET	MATERIAL	PVC
	DIAMETER	7.06±0.2mm
Electrical Properties
IMPEDANCE	75±3 Ω
ATTENUATION (20℃, ≤dB/100m)	5MHz	<3.5
	55MHz	<5.25
	211MHz	<10.0
	250MHz	<10.82
	270MHz	<11.04
	300MHz	<11.64
	330MHz	<12.26
	350MHz	<12.63
	400MHz	<13.61
	450MHz	<14.43
	500MHz	<15.29
	550MHz	<16.08
	600MHz	<16.73
	750MHz	<18.54
	870MHz	<20.04
	1000MHz	<21.49
	1450MHz	<26.94
	1800MHz	<30.24
	2000MHz	<32.09
	2200MHz	<32.15
	2300MHz	<32.87
	2500MHz	<34.25
	2700MHz	<35.60
	3000MHz	<37.53

Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.

Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
