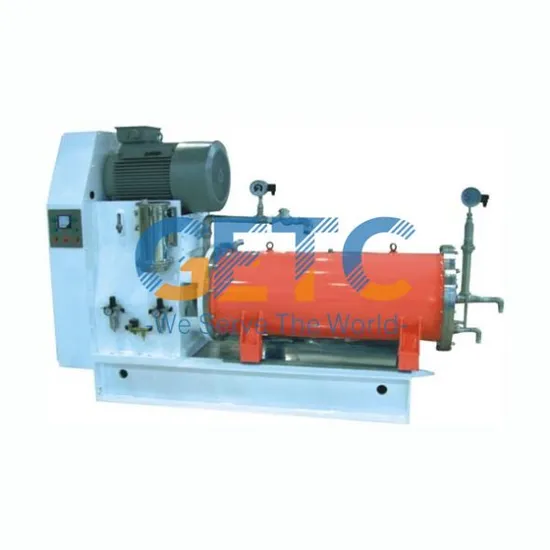

High Efficiency Low Noise Super Fineness Horizontal Pin Type Sand/ Ball Mill

Product Description

Product Description The agitator shaft activates the grinding media with high intensity through the whole grinding chamber. The highly efficient devices are suitable for product separation and grinding media, which ensures that the mill also has the capability of operating high viscous materials.
Features • High efficiency, strong operability.

• Suitable for viscosities below 20,000 cps.
• Suitable for large amount of solid-liquid suspension of high viscosity.
• Imported container type double mechanical seal, superior in safety performance to other pin sand mill.
• Pins and chamber are made of highly wear-resistant alloy to extend service life.
• No discoloring or pollution to the raw materials.
• All of the shell, end face and main shaft are equipped with cooling system with good performance. The material temperature can be held within 45ºC(through chilling water of 10ºC).
• Separating grid: of special highly wear-resistant material. Space between the grids can be adjusted according to the grinding bead sizes. A protector is available to prevent the blocking of the beads.
Applications Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical, etc.

Product Parameters

Model	Volume (L)	Dimension (L×W×H) (mm)	Motor (kw)	Feeding Speed (L/min)	Adjustable Volume (L)
WMB-10	10	1720×850×1680	18.5	0-17	9-11
WMB-20	20	1775×880×1715	22	0-17	20-22.5
WMB-30	30	1990×1000×1680	30	0-17	30-33.5
