Qizhi Wind Tower Flange Facing Machine
| US$3,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QZ4000MM
Type
Vertical Lathe
Processing Accessory
Flange
Tool Holder
Single
Power Source
Pneumatic
Controlling Mode
Pneumatic or Hydraulic
Automatic Grade
Manual
Setting Mode
Portable
Precision
High Precision
Certification
ISO 9001
Condition
New
Max. Processing Dia.
4064mm
Min. Clamping Dia.
1524mm
Rotating Speed
0-11rpm
Processing Speed
0-40rpm
Hydraulic Drive
3.73kw
Suitable for
Flange Facing
Tool Stroke
102mm
Pneumatic Drive
3.8kw
Transport Package
Woodencase
Trademark
QIZHI
Origin
China
HS Code
9031809090
Production Capacity
200sets Per Year
Product Description

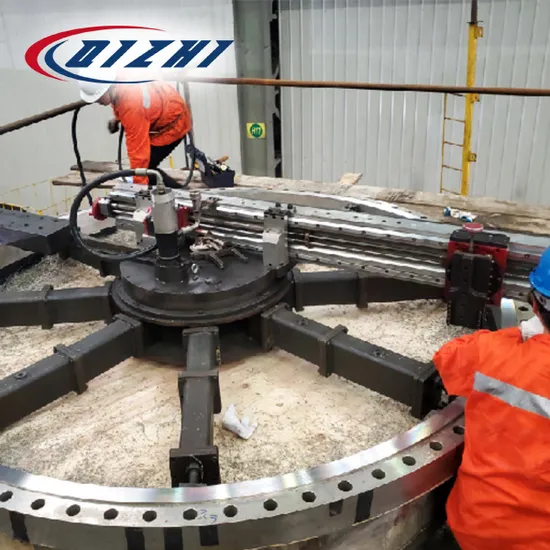

QIZHI Internal installed Pneumatic or Hydraulic Flange Facing MachineThe internal and external installed flange end facing machines adopt innovative design, adopting new linear ball screw technology and power feed tool holders. It has below features: Easy to assemble Independent locking base After product delivery, it can be immediately used for standard flanges and sealing grooves processing. Specifications
| Model | Facing Range | Installation Mode | Drive Mode | ||
| Pneumatic | hydraulic | ||||
| QZ180MME | 0-7" | 0-185mm | External installed | * | |
| QZ300MME | 0-12" | 0-305mm | * | ||
| QZ600MME | 0-24" | 0-610mm | * | ||
| QZ355MM | 2-14" | 50-355mm | Internal installed | * | |
| QZ610MM* | 2-24" | 50-610mm | * | ||
| QZ860MM | 6-34" | 152-865mm | * | ||
| QZ1000MM | 6-40" | 152-1016mm | * | ||
| QZ1500MM | 12-60" | 305-1500mm | * | ||
| QZ2000MM | 24-80" | 610-2032mm | * | * | |
| QZ3000MM | 42-120" | 1067-3050mm | * | * | |
| QZ3500MM | 55-140" | 1270-3556mm | * | * | |
| QZ4000MM | 60-160" | 1524-4064mm | * | * | |
High torque precision transmission Power type rotatable tool holder Quick assembly of size bases
Wind Tower Fabrication Machine
QIZHI machine provides complete fabrication solution for wind tower fabrication, including plate cutting machine, plate rolling machine, shell and shell fitting up rotator, welding column and boom, grinding machine, repair machine, flange facing machine.
