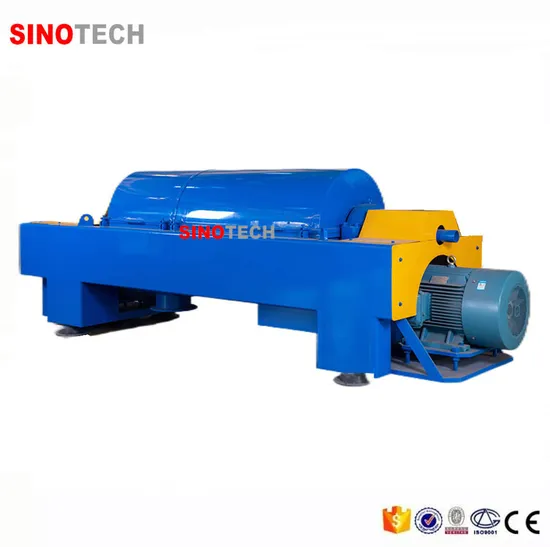

High Quality Industrial Wastewater Treatment Decanter Centrifuge Machine

Product Description

Product Description Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.
The LWS horizontal screw centrifuge is a new type of Three-phase horizontal screw centrifuge mainly suitable for three phase separation (oil- water- solid ) of separation plant . It is mainly used in waste motor oil separation; oil sludge treatment, crude oil separation
Application scope 1. Washing and dehydration of starch2. Dehydration of soybean wheat proteins3. Dehydration of fish meal and fish4. Dehydration of brewers' grains5. Purification of juice and dehydration of fruit fiber6. Separation and purification of animal and vegetable oil

The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C, esp. for separating the suspensions whose consistency and particle size vary greatly and for which recovery of filter cloth is difficult, such as treatment of PVC resins, ammonium sulfite, barrium carbonate, strontium sulphate, lithopone,starch, diatomite, plaster, bauxite, soybean protein, peanut protein, fruit juice, drinks, vegetable oil, citric acid, powder of blood, powder of titanium white, kaolin clay and drilling mud, etc., and dewatering of washed coal and fine coal, purification of waste oil, treatment of grain stillage liquid waste and municipal sewage and mineral classification. Besides, it is suitable for waste water treatment of electric power plant sludge, printing and dyeing sludge, paper manufacture sludge.
Working Principle:
Two Phases Separation Principle:
The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.
Three Phases Separation Principle:
The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.
Technical Parameters:

Bowl ID (mm)	Bowl Speed (rpm)	L / D	G - Force	Capacity (m3/h)	Solids Removal (m3/h)	Primary Motor (Kw)	Weight (Kg)	Dimension (mm)
250	4500~4600	3.0~5.0	2000~3500	3~5	0.4	11	760	1600×1100×850
300	4000~4600	3.0~5.0	2000~3500	3~15	0.8	11~15	1500	2470×1230×850
360	3200~4200	3.0~5.0	2000~3500	5~20	1.2	5~22	2000	2790×1300×880
400	3200~3900	3.0~4.8	2000~3500	5~30	2	18.5~30	2600	2950×1400×850
450	3000~3700	3.0~5.0	2000~3500	5~45	2.5	22~37	3200	3300×1500×920
500	2700~3450	3.0~5.0	2000~3500	10~80	5	30~55	5200	3730×1600×1100
550	2600~3300	3.0~5.0	2000~3500	10~90	6	45~75	6900	4000×1400×1600
600	2500~3200	3.0~5.0	2000~3500	20~95	7	37~90	7900	4200×1800×1350
650	2400~3100	3.0~5.0	2000~3500	20~105	8	37~90	8200	4300×1900×1350
750	2200~2900	3.0~5.0	2000~3500	30~120	12	55~135	12000	5000×2500×1500
900	1800~2600	3.0~5.0	2000~3500	40~180	16	75~160	18000	6500×2700×1500

FAQ Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any machine is delivered,will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, For the first deal between us,Made in China service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
