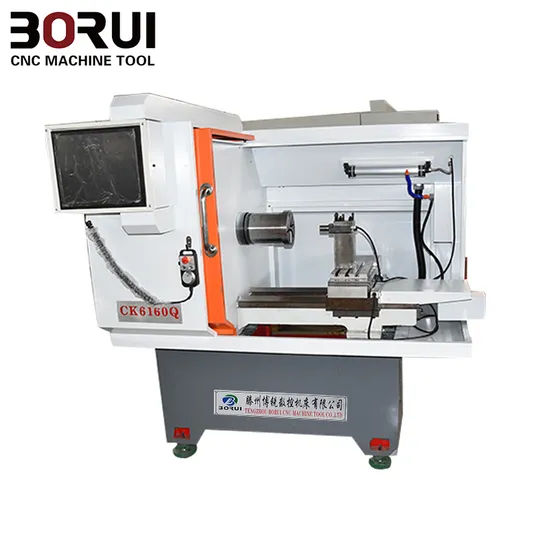

Ck6160q Alloy Wheel Repair CNC Lathe Making Machine

Product Description

CK6160Q alloy wheel repair cnc lathe making machine Product Description
The machine through the numerical control system , This machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automation, simpler programming and higher accuracy .
Product Parameters

Item	Unit	parameters and configuration
		CK6160Q
Max. wheel diameter	Inch	22"
X-axis maximum stroke	mm	320
Main motor power	kw	3
Rail width	mm	260
Max. workpiece length	mm	500
Wheel measuring direction		X,Z
Measuring tool	mm	Laser, probe (optional)
Measurement method		Point measurement and quick scan
Program optimization		Manual and automatic
Number of wheel processing programs		100000
CNC System		"borui" special system (touch screen operation, 17 "screen LCD display).
Wheel processing		surface, rim
Mchining accuracy		IT6~IT7
Surface roughness	um	Ra0.8~1.6
Main drive form		Frequency control, servo drive (optional)
Spindle speed	rpm	Factory setting 150~2800
Fast-moving feed	mm/min	X :5000 Z :8000
Repeat accuracy	mm	X :0.01 Z :0.015
Turret form		Fixed turret,Electric turret (optional)
Section of turning tool	mm	25×25
Machine size(L×W×H)	mm	190×1400×1750
Net weight	kg	1300

Standard Configuration :
System: GSK-928TEA 3 jaw manual chuck 4 station turret Frequency conversion stepless speed regulation Manual tailstock Lighting system Cooling system Automatic lubrication syste Optional Configuration:

Brand of CNC system	KND ,Siemens ,Fanuc etc
Types of tool post	Horizontal 6-station / 8-station /Gang type 4-station
Types of workpiece clamping	Hydraulic chuck ,pneumatic chuck ,spring chuck
Types of tailstock	Hydraulic tailstock ,pneumatic tailstock
Patterns of feeding	Automatic Bar feeder
Patterns of conveyor	Automatic chip conveyor
speed regulation system	Stepless speed ,Three-gear speed regulation

The main feature :
· 1.Superaudio quenching guide rail with excellent wear resistance and durable service life , High rigidity single spindle casting ,frequency conversion motor and constant speed moving
· 2.Reliable quality:Every control system equipped from world famous brand like:GSK ,Fanuc , siemens.
· 3.Automatic lubrication system minimize the damage on the machine ,extend the service life
· 4.four or six-station knife tool optional
Details Display



Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
