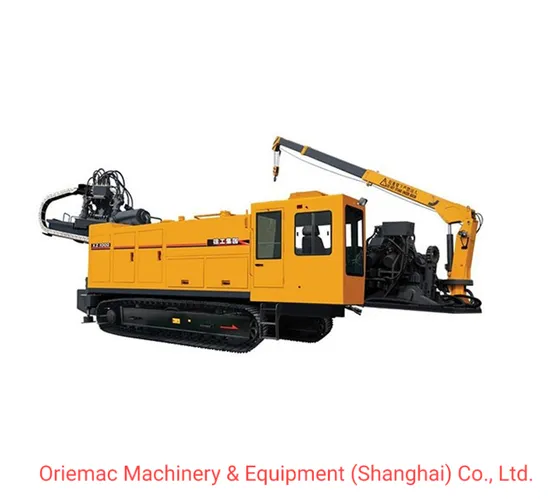

Horizontal Directional Drilling Rig for Sale Xz1600

Product Description

Horizontal Directional Drilling Rig for Sale Xz1600

Product Description

1,Numerical meter display the working torque, push or pull force and so on parametric in working conditions. Electronic sensor has rapid reaction and can show overload immediately. It also endures accuracy and delay of the traditional hydraulic meter's indication. It solve the matter to depend the operator to calculate the torque and force by the equipment's switch directive.
2,Dual-engines are used. The HDD has all the motion on the condition of any engine starting. Multi-condition technology of adjusting the travel speed combining with the multi-speed control of rotation and push or pull make HDD be suitable to the complex geology. You can use one engine in the condition of small pipe diameter in order to reduce the fuel consume. So it is inexpensive in construction.
3,The HDD adopt the patent of rotation tooth. It is easy to achieve in clipping the pipe. It is reliable in clamping.
4,The HDD's rotation adopt closed hydraulic system and it's push or pull adopt load sensitivity technology. The main part of hydraulic and electric and transmission are made of world first-class brand products, good performance, good reliability.
5,Cab's 45 ° rotation enhances comfortable operation.

Parameter

Description	Unit		Parameter value
Engine	Manufacturers		Cum--mins
	Model		QSL8.9
	Rated Power	kW /(r/min)	484 / 2100
Thrust-Pull	Max thrust-pull force	kN	1650
	Max thrust-pull speed	m/min	35
Rotation	Torque	N·m	75000
	Max spindle speed	r/min	90
Loader Crance	Max. Lifting weight	t	3.2
	Loading capacity	t·m	6.4
Max inclination angle	°		16
Travel driving	Type		Steel crawler self-propelled
	Traveling speed	Km/h	1.5
Pipe	Diameter × Length	mm×mm	Φ127×6000
Weight	kg		30000
