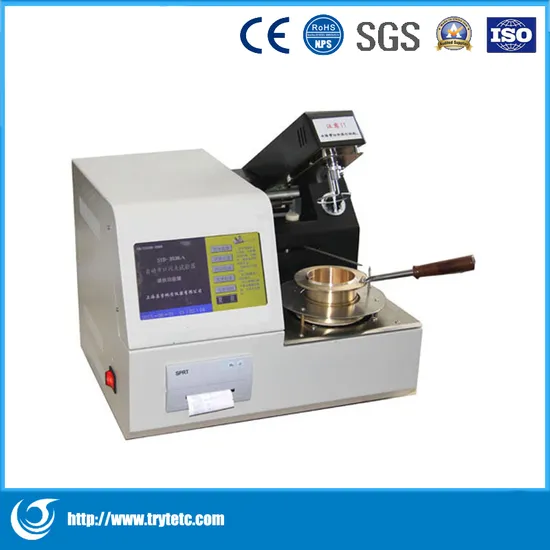

Automatic Cleveland Open Cup Flash Point Tester-Flash Point Tester-Oil Testing Instrument

Product Description

Touch Screen:
LCD Screen:
Automatic Cleveland Open Cup Flash Point Tester-Flash Point Tester-Oil Testing Instrument
Summary: This instrument is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79ºC and below 400ºC except fuel oils. Main technical features: 1. This instrument adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters.It has menu prompt and input guide. 2. It adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of English mis-operation prompt,test date,test time and other parameters. 3. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value. 4. Differential coefficient detection.Automatically correct the system deviation. 5. Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.
6. Reasonable design, safe and convenient to operate.
Main technical specifications: 1. Power supply:AC220(-10%~+5%)V, 50Hz 2. Flash point determination:Range:Ambient to 400ºC Repeatability:≤8ºC Reproducibility:≤17ºC Accuracy:0.1ºC 3. Heating rate:Correspond with GB/T3536 and ASTM D92 4. Ignition mode:Electric ignition. Gas flame diameter is 3.2mm~4.8mm 5. Ambient temperature:(10~40)ºC 6. Relative humidity:≤80% 7. Maximum power consumption:400W 8. Dimension:410mm×360mm×310mm

Packing:
Company Information:
As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.
