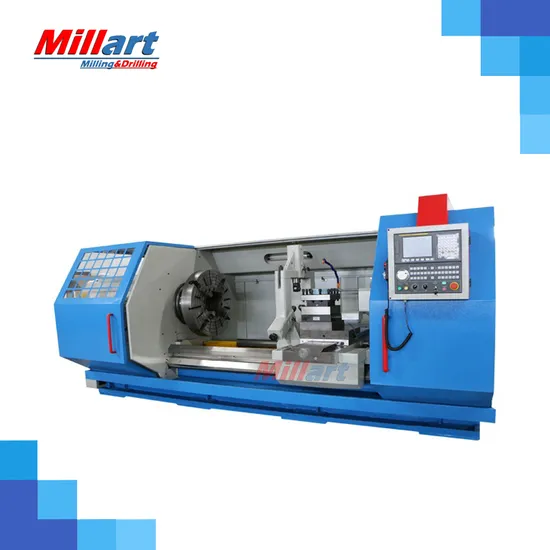

High Precision CNC Pipe Threading Machine Qk1327, CNC Oil Country Lathe Machine

Product Description

Product description:
Technical parameter :
Technical parameter :

Item		Unit	QK1327
Max dia.swing over bed		mm	800
Max dia.swing over cross slide		mm	480
Max.length of work-piece		mm	1500
Width of bed		mm	600/755
Spindle bore		mm	280
Power of spindle motor		Kw	15/22
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	Low:20-100 High:100-300
Max.traverse of X/Z		mm	X:450/550 Z:1250
X/Z rapid traverse		mm/min	4000
X-axis motor	Speed	r/min	1500
	Torgue	N.m	15/18
	Power	Kw	2.8
	Speed	r/min	1500
Z-axis motor	Torque	N.m	18/22
	Power	Kw	3.8
Tailstock quill	Diameter	mm	100
	Travel	mm	250
	Taper		Morse NO.6
Electric tool-post	Model		LDB4-6180
	No.of tool stations		Vertical four-station
	Dimension	mm	32x32
	Turret indexing time	S	2.6
Chuck			K11-630 three jaw chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	4600×2060/2100×2100
Machine weight		T	7/9

Standard accessories:
Fanuc 0i TF controller
4 position NC turret
Coolant system
Lubricating system
Work lamp
Semi closed cover
Manual tail stock
Double chucks
Rear support brackets
Pad iron
User manual
Operate tools
Optional accessories:
CNC system Siemens, GSK etc
Servo turret, Hydraulic turret, 6 position turret
Chip conveyor
Full closed cover
Hydraulic tail stock
Steady rest
Follow rest
Grinding attachment Company information:
