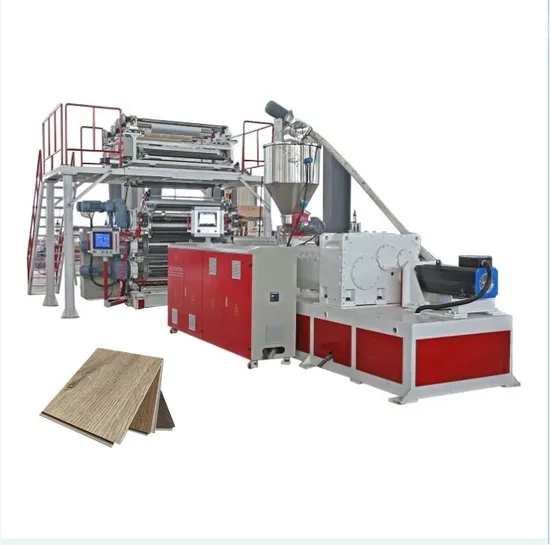

Spc Rigid Vinyl Floor Tile PVC Plank Sheet Production Machine
| US$600,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
110/220
Type
PVC/Spc/WPC Flooring Board
Plastic Processed
PVC
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Product Name
Spc WPC PVC Vinyl Flooring Tile Plank Machine
Raw Material
PVC/CaCO3/Additive
Max Capacity
600kg/H to 5000kgh
Motor
Siemens
Electrics
Siemens
Certification
CE/ISO/TUV
Installation
Click or Dry Back
Eir or Not
Eir
T-Die Mould
Jc-Times, Eko, Weilei
Transport Package
Wooden Package
Trademark
SANYI
Origin
Qingdao
HS Code
84772090
Production Capacity
15set/Month
Product Description
| Production line&Auxiliary machines: | ||||
| Part a: SPC vinyl flooring tile WPC floor board PVC plank making machine production line extrusion line | ||||
| NO. | Machine name | Type | Qty. | Note |
| 1 | Conical double screw extruder | SYP135/145/175 | 1set | Gearbox: original imported or China brand |
| 2 | Electric control system | 1set | With full sets Siemens electrics: frequency converter,AC contactor,all breakers,relay,buttons,etc. | |
| 3 | T-die mould | SMJ-1050 | 1set | JC Times(China NO.1 brand) |
| 4 | 4/6-roller calender with on-line lamination device,with thermal oil heater | SSG-450mm | 1set | adopt Guomao reducer(China top brand) |
| 5 | Cooling bracket and side cutting device | STL-20000 | 1set | With quick cooling devices |
| 6 | Haul-off device | SQY-1500 | 1set | |
| 7 | Cutting machine | SJB-1500 | 1set | With precision tracking cutter |
| 8 | Automatic robot | OSIKE | 1set | China top brand |
| 9 | EIR system and EIR roller | Optional | ||
| Part b: Auxiliary machines | ||||
| NO. | Machine name | Qty. | Note | |
| 10 | Mixer | 1set | 800/2500L,1000/3000L,1300/4500L,2000/6000L | |
| 11 | Crusher | 1set | Capacity:300-400kgs/h | |
| 12 | Grinder | 1set | Capacity:300-400kgs/h | |
FAQ
Q1---Where is your factory located?
---Our factory is located in Qingdao City, Shandong Province
Q2---How many employees of your factory?
---We have about 100 staffs including the Production/R&D/Sales/Quality/Warehouse/After-Sales Service etc
Q3---Besides the PVC sheet(board) extrusion line,if you also produce PVC Profile/Pipe etc
---No-We only focus on the PVC WPC sheet(board) Machine with at least 15 years experience
Q4---How many engineers in service?
---We have 11 professional engineers in service and they all have the passport
Q5---If you will start the machine before delivery?It's free or we need to pay?
---Of course,we must start the machine for your inspection until you satisfy with our machine and it's free.
