Lockable Power Inlet/Powercon Connector/Powercon True1 Connector

Product Description

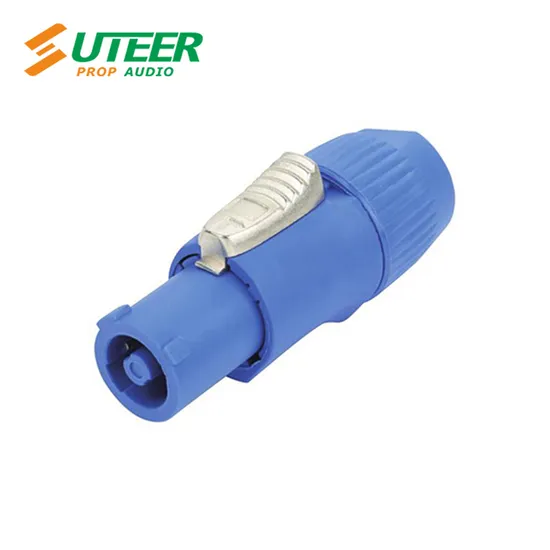

Application / Description Lockable cable connector, power-in, screw terminals, blue. The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features Locking 20A / 250V AC appliance coupler Number of electronical contacts: 2 + PE 3 contacts for line, neutral and premating safety ground Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating Fast and easy twist lock latching system Extremely robust and reliable Ergonomic design Specifications

Model	PC3FA	PC3MA	PC3FB	PC3MB
type	3-pole power-in female cable connector (Blue)	3-pole Power-in Chassis connector (Blue)	3-pole power-out female cable connector (Grey)	3-pole Power-out Chassis connector (Grey)
Shell	PA6 + 30% GR	PA6 + 30% GR	PA6 + 30% GR	PA6 + 30% GR
Contact coating	nickel plated	nickel plated	nickel plated	nickel plated
Pole number	2+PE	2+PE	2+PE	2+PE
Type of contact	Screw type terminals	Soldering	Screw type terminals	Soldering
Rated current per contact	20A	20A	20A	20A
Rated insulation voltage	250V ac	250V ac	250V ac	250V ac
Cable O.D	Ø5.5-Ø12 mm	Ø5.5-Ø12 mm	Ø5.5-Ø12 mm	Ø5.5-Ø12 mm
Packaging	Plastic bag	Plastic bag	Plastic bag	Plastic bag
Carton Packaging Dimension (mm)	390*220*240 (125 pcs)	390*220*240 (125 pcs)	390*220*240 (125 pcs)	390*220*240 (125 pcs)

Packaging Plastic bag, paper box and blister packing are available; Special packaging on request.
