Rubber Deflashing Machine Rubber Separator

Product Description

Product Description
By using the theory of aerodynamic and centrifugal force, the Spin Trim Rubber Deburring Machine for Rubber&Silicone parts is developed to make the flash and rubber products separated, applicable to all silicone, rubber, nitrile rubber, fluorine rubber seals and other kinds of molded rubber parts, such as O-Ring, rubber plug, gasket,rubber particles,Y-ring,solid miscellaneous special shaped rubber parts (rubber OD:3-80mm,flash thickness less than 0.2mm,rubber parts with flash groove),a whole molded rubber product can be processed directly to remove its flash.
The rubber samples that this Spin Trim Machine for Rubber&Silicone parts can treat:
Highlights:
1. PLC programming control, touch-screen human-machine digital operation, store all kinds of production process, parameters of each product.
2. Precisely controlled demolition speed, operating performance is simple, intelligent, working sound is low, greatly reduces the operator fatigue.
The rubber de-flashing machine has independent feeding position and working station, no need to stop machines every time when feeding, achieving continuous flow operation.
3. Power consumption is only around 4 KW per hour, more importantly,the type rubber parts deflashing machine can remarkably reduce labor force, saving workforce cost,
greatly improve production efficiency, the production capacity of one this machine is equivalent at least 50 times of workers' manual production.
Besides this machine won't do deformation, damage, dirt to the processed rubber.
4. No need to change any mold or any parts for our rubber deflashing machine.
1. NMI-356 Spin-trim type Rubber Deflashing machine:

Model	NMI-356

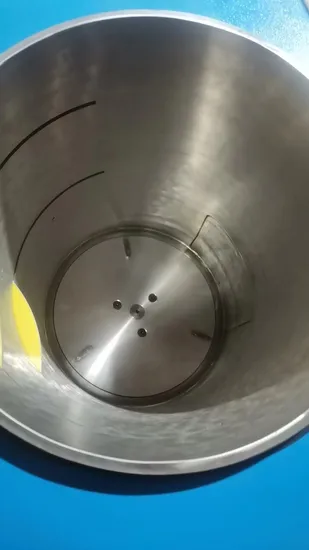

Spin-chamber capacity	18 Liter
Diameter of spin-chamber	356mm
Max.spinning speed	10000 RPM (adjustable)
Operation time/batch	Depends on different rubber parts, Cycle time adjustable
Motor	4KW
Variable-frequency Drive	5.5KW
Electronic control system	PLC+Touch screen control, automatic storage operating system.
Water spraying function	Automobile-grade automatic water spraying function.
Fresh air system:	Compressed air-cooling device
Transmission system	-Aviation grade aluminum V-ribbed pulley. -Automobile grade American gates conveyor belts. -High-speed bearings imported from Germany.
Working Noise	insulated for sound reduction
Dimension	L1330*W650*H900mm
Weight	350 KGS

2.NMI-406 spin-trim type Rubber Deflashing machine:

Model	NMI-406
Dimension	L1450*W700*H1000mm
Spin-chamber capacity	22 Liter
Diameter of spin-chamber	406 mm
Max.spinning speed	10000 RPM (adjustable)
Operation time/batch	Depends on different rubber parts, Cycle time is adjustable
Motor	5KW
Variable-frequency Drive	7.5KW
Electronic control system	PLC+Touch screen control, automatic storage operating system.
Water spraying function	Automobile-grade automatic water spraying function.
Fresh air system:	Compressed air-cooling device
Transmission system	-Aviation grade aluminum V-ribbed pulley. -Automobile grade American gates conveyor belts. -High-speed bearings imported from Germany.
Working Noise	insulated for sound reduction
Dimension	L1450*W700*H1000mm
Weight	400 KGS

3.Vibration screen separator:

Application	Separation of burrs (unwanted flash) from the good rubber parts
Explosion-proof professional vibration motor	0.18 KW
Spring cushion	Special spring rubber combined buffer device
Replaceable mesh screens	10 PCS
Dimension	L1250*W600*H600mm
Weight	100 KGS

Service:
1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.

Company Information
All of our manufacturing partners have more than 10 years of experiences in the field of rubber&plastic
machineries,dozens of experienced engineers and around 200 skilled workers, as well as a considerable number
of precise,digital control, advanced processing machine tools. All ensure every part and details of our machines
with good performance and qualified running test before delivery to our customers on time.
