PLC Controller Supports OEM Open 4 Terminal Interface Interface Form PLC Controller

Product Details

Product Description

Product Description
Product introduction
GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Overview
Quick Details
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-PLC-511
Isolation level:Optocoupler isolation 500V
CAN open baud rate(bps):1000K,500K,250K,125K,100K,50K,10K
PDO mode:synchronization, looping,event-driven, polling
Bus terminal module quantity:up to 32 modules
Digital I/O signal:256 input/output
Analog I/O signal:64 input/output
Configuration mode:automatic configuration
PDO number (CAN open):4Tx/4Rx
CAN-Bus interface:one OPEN terminal interface,4Pin
Power:24V DC (-15%+20%)
Description
Total 3 control modules

Model	Characteristic	Communication bus

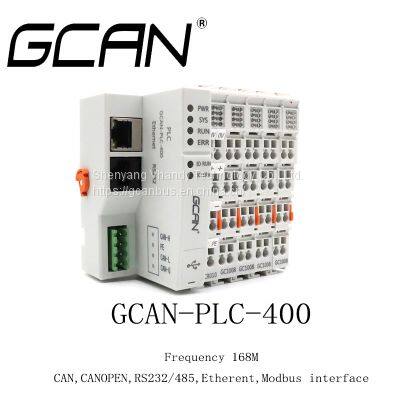

GCAN-PLC-400	CPU frenquency 168M	1*CAN+1*Ethernet+ 1*RS232(or RS485)
	Program storage:16M byte
	Data storage:512K byte
GCAN-PLC-510	CPU frenquency 400M	1*CAN+1*Ethernet+ 1*RS232(or RS485)
	Program storage:32M byte
	Data storage:16M byte
GCNA-PLC-511	CPU frenquency 400M	1*CAN+1*Ethernet+ 1*RS232+1*RS485
	Program storage:32M byte
	Data storage:16M byte

Total 2 communication modules

Model	Characteristic	Communication bus
GCAN-IO-8000	Protocol:CANopen	1*CAN
	Number of Nodes:1~127
	Baud rate:10K~1000K
	Maximum IO module:32
GCAN-IO-8100	Protocol:Modbus TCP/RTU	1*Ethernet+ 1*RS232+1*RS485
	Number of Nodes:1~247
	Baud rate:600~115200
	Maximum IO module:32

Input and output modules
Product features
● CAN bus interface, with ISO11898 standard
● Ethernet interface, 10/100M adaptive
● Serial interface, RS232 or RS485
● Programming: OpenPCS (support SFC, LD, FBD, ST, IL of IIEC 61131-3 standard)
● Power supply: 24V DC (18~36V)
● Maximum number of I/O modules to fit: 32 (up to 32*8 I/O points)
● Working temperature and humidity: -40°C~+85 °C, 0-95% RH without condensation
● Dimensions: 97 mm*68 mm*47 mm
Packaging
After-sale serviceOur main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
