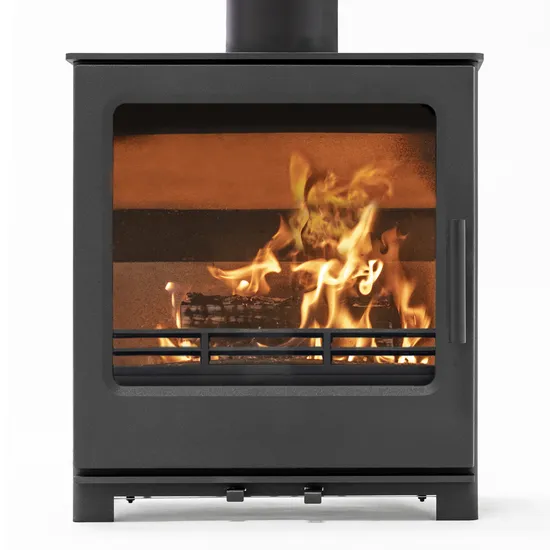

Eco Design Ready Defra Approved Multifuel Stove S106m 5kw

Product Description

Product Description
This stove is designed by our own Innonfire team before being sent off to the renowned Kiwa Gastec to be rigorously tested,these tests showed that all the models exceed the very tough SIA Ecodesign regulations that are set to come into force in 2022. In addition to this, they have also been approved for use in smoke free zones (Defra Approved). Exceeding the Ecodesign test is a true mark of a quality stove; inferior products that are not well engineered will fail often fail this test.
This modern steel body with cast iron door stove will suit a huge range of homes and fireplaces designs,it has an impressive secondary/tertiary burn and twin baffle design,the two work in tandem to recycle the initial smoke produced by fire and continue to burn it off before it is expelled from the stove.This stove with top and rear flue outlets and adjustable feet for levelling out uneven surfaces.The stoves high speed, pre-heated air-wash system ensures that warm air is rushing onto this glass, helping to keep it free of smoke stains. This stove has a fully vermiculite lined inner shell that helps protect the stove's body and increase its life span.
The range of stoves are steel bodied units with thick cast iron doors; the preferred constriction method of modern day stoves. This stove has an incredibly thick, 8mm top and fully seam welded body. Its thick top helps radiate heat long after the stove has cooled down. The fuel itself burns on a mineral cast iron grate that includes a fully folded ash pan with tool. All the stoves have top and rear flue outlets and adjustable feet for levelling out uneven surfaces. Product Parameters 2022 Eco Design Ready DEFRA APPROVED CE approved Over 81.3% efficient when burning wood Over 77.4% efficient when burning smokeless coal Cast iron grate and galvanised ash pan Distance to combustible materials at the rear (400mm) Distance to combustible materials at the side (500mm) Suitable for 12mm hearth. (Checkout Option) 80mm direct air spigot - (Room sealed stove) Design and Tested in the UK - All tests carried out by KIWA Gastec in Cheltenham Cool to touch black handle as standard Thick cast iron door Top and rear flue outlet Heat resistant fire rope seals Full vermiculite brick lining Finished in heat resistant matt black paint Flue diameter 125mm (5'') with choice of top or rear flue outlet 8mm thick steel top, 5mm thick body Pre-heated air wash system to help keep the glass clean Tertiary air system that re-burns the smoke for a clean and efficient burn. Direct air box available

ITEM NO.	OUTPUT	SIZE	Weight	Efficency	Fuel	QTY:	Glass	Paint
S106M 5	5KW	W490*D310*H550mm	80 KGS	Wood:81.3% MSF:77.4%	Wood/coal	168pcs /20'	SCHOTT	Forrest :metallic / Flat Black

Detailed Photos Packaging & Shipping
